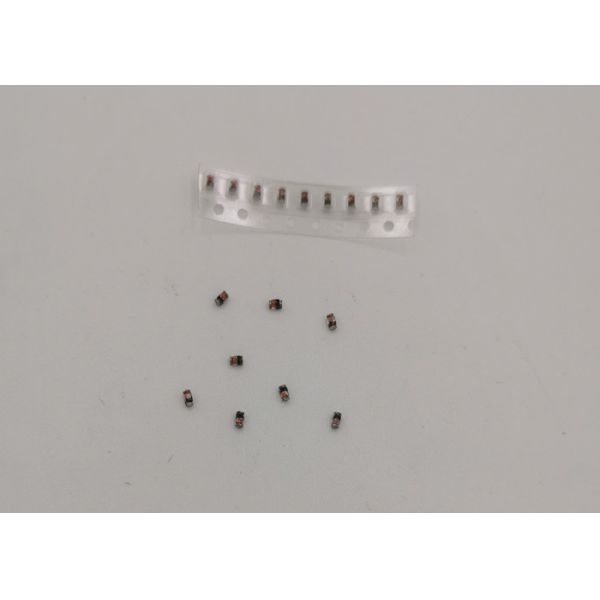

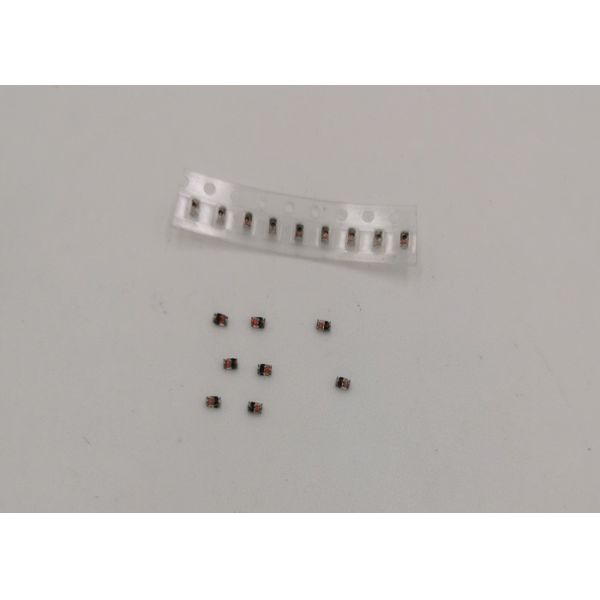

Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package
Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package
Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package
Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package
Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package
Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package
Specifications
Brand Name :
XUYANG
Model Number :
MCL103A
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
2500pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
7 - 10 work days
Packaging Details :
tape in reel, 2500pcs/reel
Part number :
MCL103A
VR :
40V
Package :
Micro Melf
SPQ :
2500pcs
Forward current :
350mA
Cathode band color :
black
Description

SMD Small Signal Schottky Diode With Micro Melf Package MCL103A MCL103B MCL103C

Features

1. Saving space

2. High reliability

3. Low reverse current and low forward voltage

4. Micro Melf Package, fit onto SOD-323/ SOT-23 footpoints

Applications

Low current rectification and high speed switching

Construction

Silicon epitaxial planar

Absolute Maximum Ratings

Tj=25℃

Parameter Test Conditions Type Symbol Value Unit
Repetitive peak reverse voltage MCL103A VRRM 40 V
MCL103B VRRM 30 V
MCL103C VRRM 20 V
Repetitive peak forward current Tp≤1 s IFPM 1 A
Forward current IFM 350 mA
Power dissipation Tamb=25℃ PV 400 mW
Storage temperature range Tstg -65~+175

℃

Electrical Characteristics

Tj=25℃

Parameter Test Conditions Type Symbol Min Typ Max Unit
Forward voltage IF=20mA VF 0.37 V
IF=200mA VF 0.6 V
Reverse current VR=30V MCL103A IR 5 μA
VR=20V MCL103B IR 5 μA
VR=10V MCL103C IR 5 μA
Diode capacitance VR=VF=0, f=1MHz CD 50 pF
Reverse recovery time IF=IR=200mA to 0.1mA trr 10 ns

Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package

Space Saving Schottky Diode Smd 350mA Forward Current With Micro Melf Package

What can you from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
