Name :
Schottky Diode
Part number :
10SQ030 - 10SQ100
IF :
10A
Voltage :
30-100V
Package :
R-6
Junction Temperature :
-55-150°C
Description

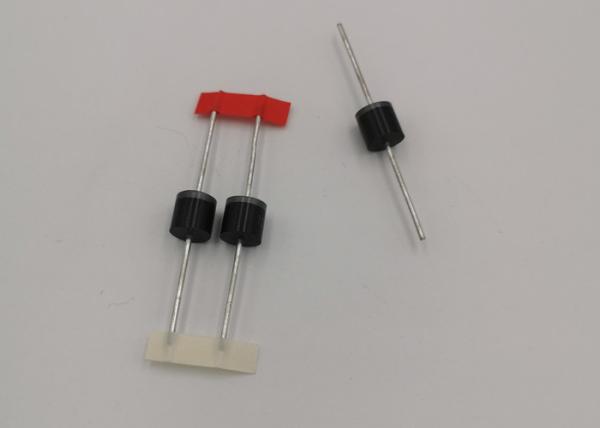

Solar Panel Bypass Diode Schottky Barrier Diode 10SQ030 Thru 10SQ100

FEATURES

1. Metal of silicon rectifier , majority carrier conduction
2. Guard ring for transient protection
3. Low power loss,high efficiency
4. High current capability,low VF
5. High surge capacity
6. Plastic package has UL flammability classification 94V-0
7. For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications

MECHANICAL DATA
● Case: JEDEC R-6 molded plastic
● Polarity: Color band denotes cathode
● Weight: 0.07 ounces , 2.1 grams
● Mounting position: Any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%

CHARACTERISTICS SYMBOL 10SQ030 10SQ040 10SQ045 10SQ050 10SQ060 10SQ100 UNIT
Maximum Recurrent Peak Reverse Voltage VRRM 30 40 45 50 60 100 V
Maximum RMS Voltage VRMS 21 28 31.5 35 42 70 V
Maximum DC Blocking Voltage VDC 30 40 45 50 60 100 V

Maximum Average Forward

Rectified Current@Tc=95 ℃

 I(AV) 10 A

Peak Forward Surage Current 8.3ms single half

sine-wave super imposed on rated load(JEDEC

Method)

 IFSM 275 A
Peak Forward Voltage at 10A DC(Note1) VF 0.55 0.7 0.8 V

Maximum DC Reverse Current @Tj=25℃

at Rated DC Bolcking Voltage @Tj=100℃

 IR

0.5

50

 mA
Tyical Junction Capacitance (Note2) CJ 450 PF
Tyical Thermal Resistance (Note3) RθJC 3.0 ℃/w
Operating Temperature Range TJ -55 to+150 ℃
Storage Temperature Range TSTG -55 to+150 ℃

NOTES: 1.300us Pulse Width, 2%Dudy Cycle.

2.Measured at 1.0 MHZ and applied reverse voltage of 4.0VDC.

3.Thermal Resistance Junction to Case.
