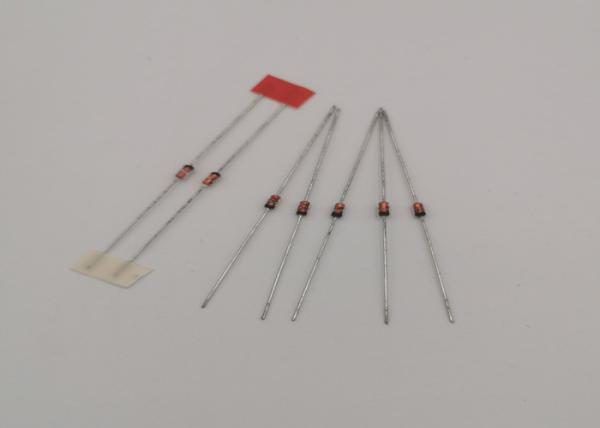

Active Components Small Signal Schottky Diode BAT85 Wigh DO-35 Package

Features

· For general purpose applications
· These diodes features very low turn-on voltage and fast switching.
· These devices are protected by a PN junction guard ring against excessive voltage, such as

electrostatic discharges.
· Diode is also available in the mini MELF case with type designation BAS85

· High temperature soldering guaranteed: 260℃/10 seconds at terminals
· Component in accordance to RoHS 2015/863/EU

Applications:

Applications where a very low forward voltage is required

ABSOLUTE RATINGES AND ELECTRICAL CHARACTER

Tj=25℃

PARAMETER SYMBOLS VALUE MIN TYP MAX UNIT
Repetitive peak reverse voltage VR 30 Volts
Forward continuous current at TA=25°C IF 2001) mA

Repetitive peak forward current at

TP<1s, δTA=25°C

 IFM 3001) mA
Surge forward current at TP<10ms, TA=25°C IFSM 6001) mA
Power dissipation at TA=65°C Ptot 2001) mW
Junction temperature TJ 125 °C
Ambient operating temperature range TA -65 to +125 °C
Storage temperature range TSTG -65 to +150 °C
Reverse breakdown voltage tested with 100µA pulses V(BR)R 30 Volts

Forward voltage

Pulse test TP

at IF=0.1mA,

at IF=1mA,

at IF=10mA,

at IF=30mA,

at IF=100mA,

VF

0.50

0.24

0.32

0.4

0.8

Volts
Leakage current VR=25V IR 2 µA
Junction capacitance at VR=1V, f=1MHz CJ 10 pF
Reverse recovery time form IF=10mA, IR=1mA TRR 5 ns
Thermal resistance junction to ambient air RJA 3002) K/W

NOTES:

1) Valid provided that leads at a distance of 4mm from case are kept at ambient temperature

2) Valid provided that leads at a distance of 4mm from case are kept at ambient temperature(DO-35)

Active Components Small Signal Fast Switching Diodes 125℃ Junction Temperature

Active Components Small Signal Fast Switching Diodes 125℃ Junction Temperature
