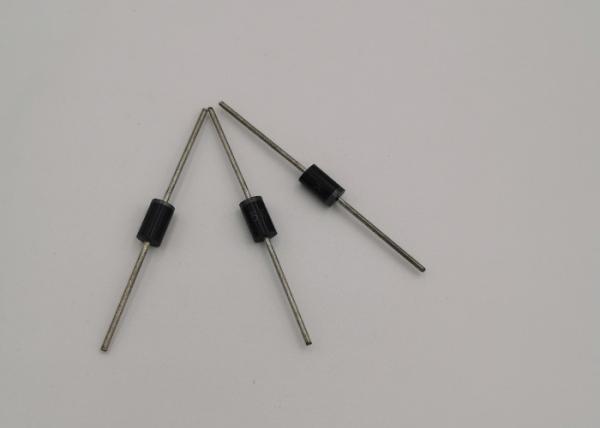

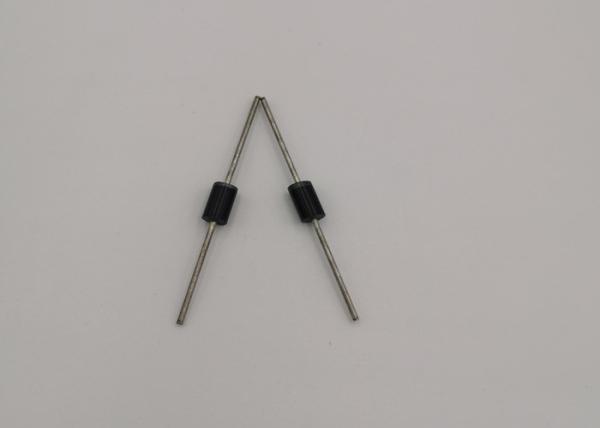

Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification
Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification
Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification
Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification
Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification
Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification
Specifications
Brand Name :
XUYANG
Model Number :
K300
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Payal
Supply Ability :
200000PCS/Month
Delivery Time :
5 - 8 work days
Packaging Details :
bulk in bag/tape in box
Part Number :
K300
Current :
3A
Voltage :
270-330V
Case :
DO-27/DO-201AD
Operating Temperature :
-40~+125°C
Shipping by :
DHL\UPS\Fedex\EMS\sea
Description

DO-201 SIDAC Diode K200 K220 K240 K300 Used For Pulse Generators, High-Voltage Lamp Triggers

The Sidac is a silicon bilateral voltage a triggered switch with greater power-handling

capabilities than standard diacs. Upon application of a voltage exceeding the sidac

breakover voltage point, the sidac switches on through a negative resistance region

to a low on-state voltage. Conduction continues until the current is interupted or drops

below the minimun holding current of the device.

Applications:

1 Natural gas ignitors
2 Lamp ignitors
3 Flash lamp
4 Pulse generators


Electrical parameters:

Part

Number

VBO

Breakover Voltage

(Instantancous

Clamping voltage)

(V)

Min. Max.

IBO

Breakover

Current

( A)

Max.

VDRM

Blocking

Voltage

(V)

Min.

IDRM

Peak

Off-State

Current

at VDRM

( A)

Max.

IT

Continuous

On-State

DC or RMS

Current

(A)

Max.

IH

Holding

Current

(mA)

Max.

VTM

Peak

On-State

Voltage

IT=1A

(V)

Max.
K150 140-170 10 115 5 1.0 100 1.5
K200 190-215 10 150 5 1.0 100 1.5
K220 205-230 10 165 5 1.0 100 1.5
K240 220-250 10 175 5 1.0 100 1.5
K250 240-280 10 190 5 1.0 100 1.5
K300 270-330 10 215 5 1.1 100 1.5

Size:

Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification

Bilateral Voltage Triggered SIDAC Diode K300 With ISO9001 Certification

What can you from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
