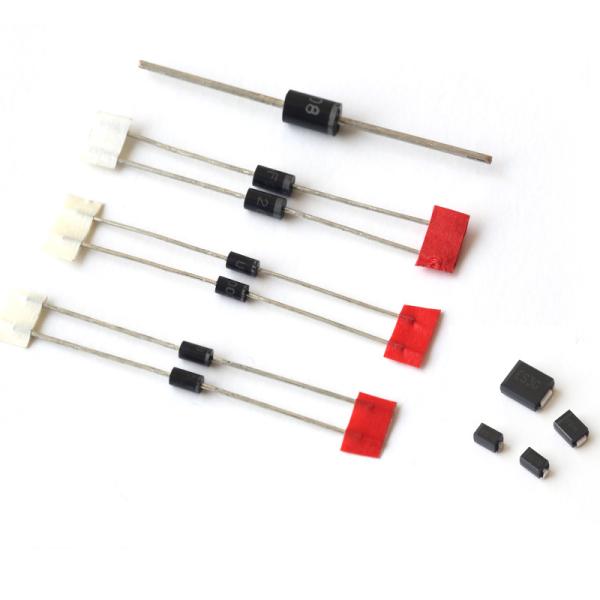

1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case
Specifications
Brand Name :
XUYANG
Model Number :
SR1100
Certification :
ISO9001
Place of Origin :
China
MOQ :
5000
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
5 - 8 work days
Packaging Details :
tape in box, 5000pcs/box
Name :
Schottky Diode
Part number :
SR1100
Current :
1A
Voltage :
100V
Package :
DO-41
SPQ :
5000pcs
Lead Free Status :
Lead free/RoHS
Shipping by :
DHL\UPS\Fedex\EMS\sea
Description

1A DO-41 Package DIP Schottky Barrier Rectifier Diode SR120 thru SR1100

FEATURES

* Low forward voltage drop

* High current capability

* High reliability

* High surge current capability

* Epitaxial construction

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202,

method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight: 0.34 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER SR120 SR130 SR140 SR150 SR160 SR180 SR110 UNITS
Maximum Recurrent Peak Reverse Voltage 20 30 40 50 60 80 100 V
Maximum RMS Voltage 14 21 28 35 42 56 70 V
Maximum DC Blocking Voltage 20 30 40 50 60 80 100 V

Maximum Average Forward Rectified Current

See Fig. 1

1.0

A

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

30

A
Maximum Instantaneous Forward Voltage at 1.0A 0.55 0.70 0.85 V

Maximum DC Reverse Current Ta=25 C

at Rated DC Blocking Voltage Ta=100 C

1.0

10

mA

mA
Operating Temperature Range, TJ -65--125 -65--150 ℃
Storage Temperature Range, TSTG -65--150 ℃

Size:

1A 100V Low Leakage Schottky Diode SR1100 With Molded Plastic Case

What can you from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
