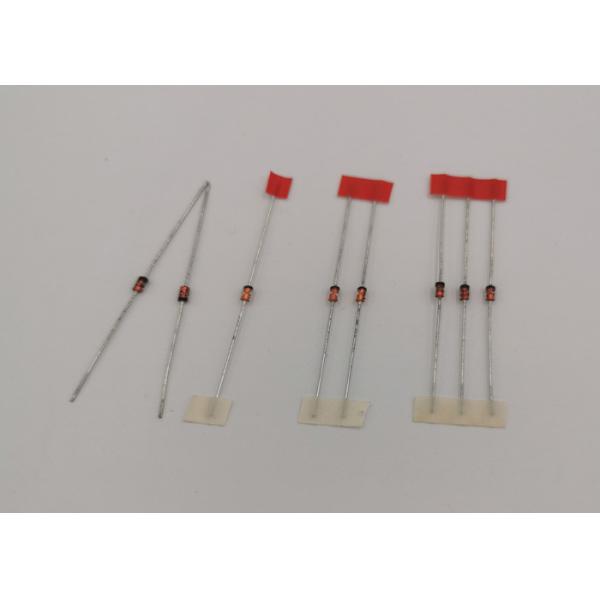

4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
Specifications
Brand Name :
XUYANG
Model Number :
1N4150
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
5000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
5 - 8 work days
Packaging Details :
tape in box, 5000pcs/box
Name :
High Speed Switching diode
Part number :
1N4150
VR :
40V
Package :
DO-35
Recovery Time: :
4ns
Shipping by :
DHL\UPS\Fedex\EMS\sea
Description

1N4150 High Speed Switching Diode 1N4150 50V 200MA With DO-35 Package

Features

1. High reliability
2. High forward current capability

.

Applications

High speed switch and general purpose use in computer and industrial applications

Construction

Silicon epitaxial planar

Mechanical Data

Case: DO-35, MiniMELF

Terminals: Plated Leads Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: DO-35 0.13 grams MiniMELF 0.05 grams

Marking: Cathode Band Only

Absolute Maximum Ratings

TJ = 25°C

Parameter Test Conditions Symbol Value Unit
Repetitive peak reverse voltage VRRM 50 V
Reverse voltage VR 40 V
Peak forward surge current tp≦1 s IFSM 4 A
Forward current IF 600 mA
Average forward current VR=0 IFAV 300 mA
Power dissipation Pv 500 mW
Junction temperature Tj 175 ℃
Storage temperature range Tstg -65~+125 ℃

Maximum Thermal Resistance

TJ = 25°C

Parameter Test Conditions Symbol Value Unit
Junction ambient on PC board 50mm×50mm×1.6mm RthJA 500 K/W

Electrical Characteristics

TJ = 25°C

Parameter Test Condition Symbol Min Typ Max Unit
Forward Voltage IF = 1mA VF 0.54 0.62 V
IF = 10mA VF 0.66 0.74 V
IF = 50mA VF 0.76 0.86 V
IF = 100mA VF 0.82 0.92 V
IF = 200mA VF 0.87 1.0 V
Reverse Current VR = 20V IR 100 nA
VR = 50V, TJ = 150°C IR 100 μA
Diode Capacitance VR = 0, f=1MHz, VHF-50mV CD 2.5 pF
Reverse Recovery Time

IF = IR= 10…100mA, IR = 1mA,

RL = 100Ω

 trr 4 ns

Drawing:

4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability

4ns Fast 1n4150 Diode , Switching Signal Diode With High Reliability
