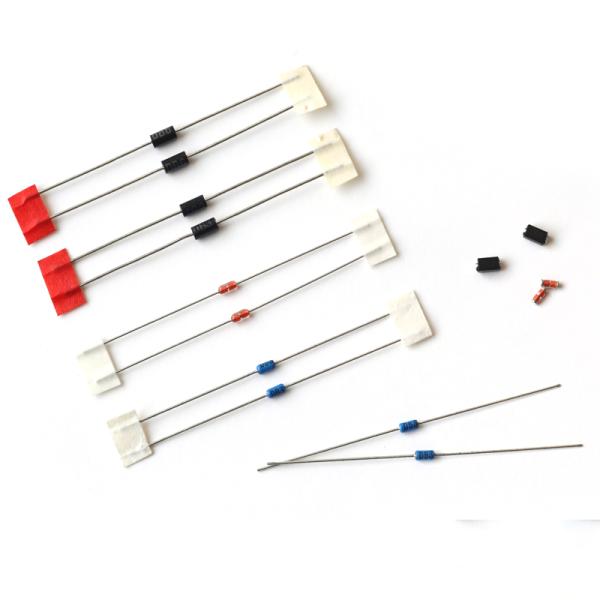

Throught Hole Silicon Bidirectional Diac Trigger Diode DB3 DB4 DB6

Features

The three-layer, two-terminal, axial-lead, hermetically sealed diacs are designed specifically for

triggering thyristors. They demonstrate low breakover current at breakover voltage as they

withstand peak pulse current. The breakover symmetry is within three volts(DB3,DC34,DB4) or

four volts(DB6). These diacs are intended for use in thyrisitors phase control , circuits for lamp

dimming, universal motor speed control and heat control.
DB3/DC34/DB4/DB6 are bi-directional triggered diode designed to operate in conjunction with

Triacs and SCR's.
High temperature soldering guaranteed:260 /10 seconds at terminals

Mechanical Data

· Terminals: Plated axial leads
· Polarity: Color band denotes cathode end
· Mounting Position: Any

Absolute Maximum Ratings

Electrical Characteristics

Notes:1.Electrical characteristics applicable in both forward and reverse directions.
2.Connected in parallel with the devices.

FAQ

Q1: Do you have a test room?

Yes, we have professional staff to take various detection and life test for every batch of diodes, and

special simulation testing equipment aimed at the lighting industry.

Q2: What is your Lead Time?

For general diode and standard printing and packaging request, shipment in 3 days.

For special printing or packaging the first time, normal lead time would be 15 days.

If the order quantity is large, we hope customers place order 15 days in advance for safety.

Q3: Can customers provide logo by themselves?

We can print according to the samples provided by customers if they need special requirement,

but delivery time would be longer because of the extra producing time for printing mold and

packaging material.

Q4: Why choose cooperation with us?

Monthly production capacity up to 300 million pieces and short delivery time.

Factory and products pass ISO9001:2008 certification, all products are conformed to RoHS.

Foreign trade team with more than 10 years of professional export experience can meet various

customer requirements.
