Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
Specifications
Brand Name :
XUYANG
Model Number :
DB3
Certification :
ISO9001
Place of Origin :
China
MOQ :
5000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
5 - 8 work days
Packaging Details :
tape in reel, 5000pcs/reel
Part number :
DB3
VBO :
28-36V
Package :
SMA/DO-214AC
Junction temperature :
-40~+110°C
Packing :
tape in reel
Shipping by :
DHL\UPS\Fedex\EMS\sea
Description

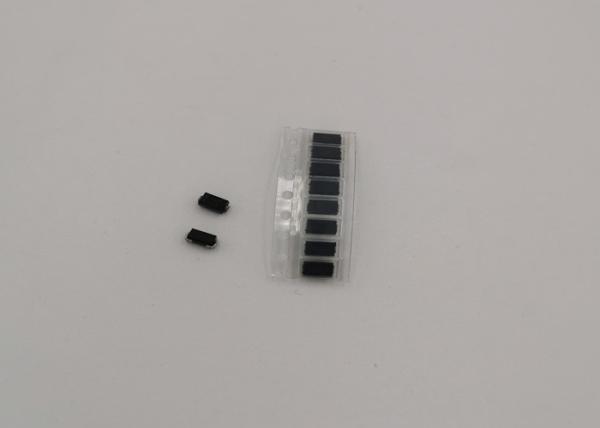

Silicon Bidirectional DIAC Trigger Diode DB3 SMA With Surface Mount Package

Features

1. Low reverse leakage

2. High forward surge capability

3. High temperature soldering guaranteed: 250℃/10 seconds, 0.375" (9.5mm) lead length

Mechanical Data

·Terminals: Plated axial leads
·Polarity: Color band denotes cathode end
·Mounting Position: Any

Absolute Maximum Ratings

Symbols Parameter Value Unit
DB3
Pc

Power Dissipation on Printed

Circuit [ L=10mm ]

 TA=50℃ 150 mW
ITRM

Repetitive Peak on-state

Current

tp=10us

F=100Hz

 2.0 A
TSTG/TJ Storage and 0 perating Junction Temperature -40 to +125 / -40 to 110 ℃

Electrical Characteristics

Parameter Symbol Test Conditions Value Unit
Breakover voltage VBO MIN. 28 V
TYP. 32
MAX. 36
Breakover voltage symmetry |VBO1-VBO2| C=22nF** MAX. ±3 V
Dynamic breakover voltage* △V VBO and VF at 10mA MIN. 5 V
Output voltage* VO see diagram 2(R=20Ω) MIN. 5 V
Breakover current* IBO C=22nF** MAX. 100 μA
Rise time* tr MAX. 1.5 μs
Leakage current* IR VR=0.5VBO max MAX. 10 μA

Notes:1.Electrical characteristics applicable in both forward and reverse directions.
2.Connected in parallel with the devices.

Size:

Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge CapabilitySilicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability

Silicon Bidirectional DB3 DIAC Trigger Diode With High Forward Surge Capability
