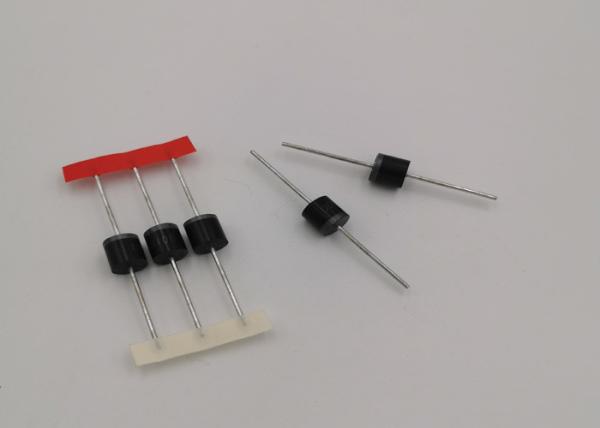

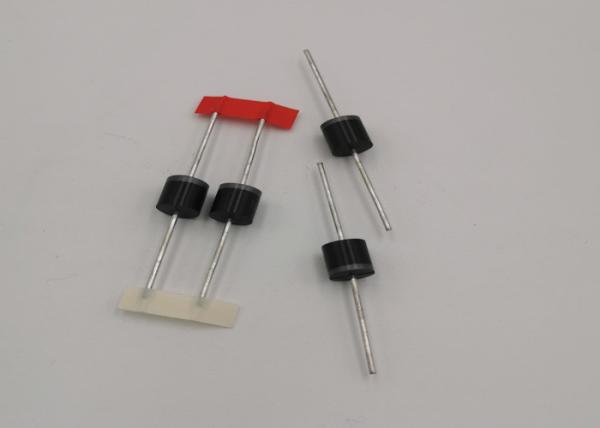

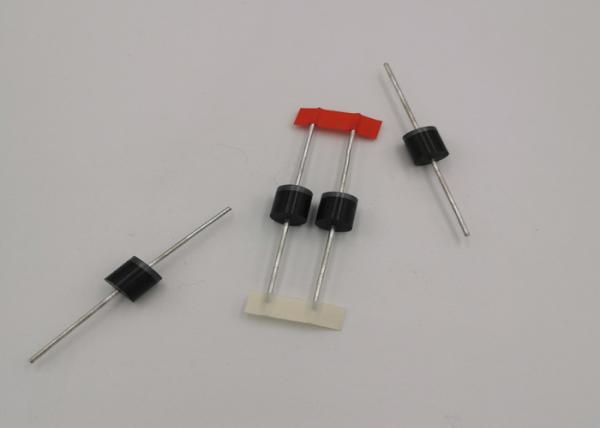

5000W 5.0-180V TVS Transient Voltage Suppressor Diode 5KP5.0C-5KP180C
5000W 5.0-180V TVS Transient Voltage Suppressor Diode 5KP5.0C-5KP180C
5000W 5.0-180V TVS Transient Voltage Suppressor Diode 5KP5.0C-5KP180C
5000W 5.0-180V TVS Transient Voltage Suppressor Diode 5KP5.0C-5KP180C
5000W 5.0-180V TVS Transient Voltage Suppressor Diode 5KP5.0C-5KP180C
5000W 5.0-180V TVS Transient Voltage Suppressor Diode 5KP5.0C-5KP180C
Specifications
Brand Name :
XUYANG
Model Number :
5KP5.0C-5KP180C
Certification :
ISO9001
Place of Origin :
China
MOQ :
1250pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
300000pcs/month
Packaging Details :
1250pcs/box
Name :
5000W 5KP5.0C-5KP180C TVS Diode DO-27 DIP Through Package Tape in box
Watt :
5000W
Voltage :
5.0-180V
Material :
Printed
SPQ :
125pcs
Colour :
Black
Description

5000W 5KP5.0C-5KP180C TVS Diode R-6 DIP Through Package Tape in box

FEATURES:

* 5000 Watts Surge Capability at 1ms
* Excellent clamping capability

* Low zener impedance

* Fast response time: Typically less than

* Typical I R less than 1 A above 10V
* High temperature soldering guaranteed:
260 C / 10 seconds / .375"(9.5mm) lead

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any
* Weight: 0.34 grams

Type Breakdown Voltage @ I T

Reverse

Stand off

Voltage

Maximum

Reverse Leakage

@ V RM

Maximum

Peak Pulse

Current (Note2)

Maximum

Clamping

Voltage @ I PPM

Maximum

Temperature Coefficient of VBR
V BR (V) I T V RM I R I PPM V C (%/ ° C)
Min. Max. (mA) (V) (µA) (A) (V)
5KP5.0C 6.40 7.30 50 5.0 10000 520 9.60 0.057
5KP5.0CA 6.40 7.00 50 5.0 10000 543 9.20 0.057
5KP6.0C 6.67 8.15 50 6.0 10000 439 11.4 0.061
5KP6.0CA 6.67 7.37 50 6.0 10000 485 10.3 0.061
5KP6.5A 7.22 8.82 50 6.5 4000 407 12.3 0.065
5KP6.5CA 7.22 7.98 50 6.5 4000 447 11.2 0.065
5KP7.0A 7.78 9.51 5.0 7.0 2000 378 13.3 0.068
5KP7.0CA 7.78 8.60 5.0 7.0 2000 417 12.0 0.068
5KP7.5A 8.33 10.2 5.0 7.5 500 350 14.3 0.073
5KP7.5CA 8.33 9.21 5.0 7.5 500 388 12.9 0.073
5KP8.0C 8.89 10.9 5.0 8.0 300 333 15.0 0.075
5KP8.0CA 8.89 9.83 5.0 8.0 300 367 13.6 0.075
5KP8.5C 9.44 11.5 5.0 8.5 100 314 15.9 0.078
5KP8.5CA 9.44 10.4 5.0 8.5 100 347 14.4 0.078
5KP9.0C 10.0 12.2 5.0 9.0 40 295 16.9 0.081
5KP9.0CA 10.0 11.1 5.0 9.0 40 325 15.4 0.081
5KP10C 11.1 13.6 5.0 10 30 266 18.8 0.084
5KP10CA 11.1 12.3 5.0 10 30 294 17.0 0.084
5KP11C 12.2 14.9 5.0 11 10 249 20.1 0.086
5KP11CA 12.2 13.5 5.0 11 10 274 18.2 0.086
5KP12C 13.3 16.3 5.0 12 10 227 22.0 0.088
5KP12CA 13.3 14.7 5.0 12 10 251 19.9 0.088
5KP13C 14.4 17.6 5.0 13 10 210 23.8 0.090
5KP13CA 14.4 15.9 5.0 13 10 232 21.5 0.090
5KP14C 15.6 19.1 5.0 14 10 194 25.8 0.092
5KP14CA 15.6 17.2 5.0 14 10 215 23.2 0.092
5KP15C 16.7 20.4 5.0 15 10 188 26.9 0.094
5KP15CA 16.7 18.5 5.0 15 10 206 24.4 0.094
5KP16C 17.8 21.8 5.0 16 10 176 28.8 0.096
5KP16CA 17.8 19.7 5.0 16 10 192 26.0 0.096
5KP17C 18.9 23.1 5.0 17 10 164 30.5 0.097
5KP17CA 18.9 20.9 5.0 17 10 181 27.6 0.097
5KP18C 20.0 24.4 5.0 18 10 155 32.2 0.098
5KP18CA 20.0 22.1 5.0 18 10 172 29.2 0.098
5KP20C 22.2 27.1 5.0 20 10 139 35.8 0.099
5KP20CA 22.2 24.5 5.0 20 10 154 32.4 0.099
5KP22C 24.4 29.8 5.0 22 10 127 39.4 0.100
5KP22CA 24.4 26.9 5.0 22 10 141 35.5 0.100
5KP24C 26.7 32.6 5.0 24 10 116 43.0 0.101
5KP24CA 26.7 29.5 5.0 242 10 128 38.9 0.101
5KP26C 28.9 35.3 5.0 26 10 107 46.6 0.101
5KP26CA 28.9 31.9 5.0 26 10 119 42.1 0.101
5KP28C 31.1 38.0 5.0 28 10 99 50.1 0.102
5KP28CA 31.1 34.4 5.0 28 10 110 45.4 0.102
5KP30C 33.3 40.7 5.0 30 10 93 53.5 0.103
5KP30CA 33.3 36.8 5.0 30 10 103 48.4 0.103
5KP33C 36.7 44.9 5.0 33 10 85 59.0 0.104
5KP33CA 36.7 40.6 5.0 33 10 94 53.3 0.104
5KP36C 40.0 48.9 5.0 36 10 78 64.3 0.104
5KP36CA 40.0 44.2 5.0 36 10 86 58.1 0.104
5KP40C 44.4 54.3 5.0 40 10 70 71.4 0.105
5KP40CA 44.4 49.1 5.0 40 10 78 64.5 0.105
5KP43C 47.8 58.4 5.0 43 10 65 76.7 0.105
5KP43CA 47.8 52.8 5.0 43 10 72 69.4 0.105
5KP45C 50.0 61.1 5.0 45 10 61 80.3 0.106
5KP45CA 50.0 55.3 5.0 45 10 69 72.7 0.106
5KP48C 53.3 65.2 5.0 48 10 58 85.5 0.106
5KP48CA 53.3 58.9 5.0 48 10 65 77.4 0.106
5KP51C 56.7 69.3 5.0 51 10 55 91.1 0.107
5KP51CA 56.7 62.7 5.0 51 10 61 82.4 0.107
5KP54C 60.0 73.3 5.0 54 10 52 96.3 0.107
5KP54CA 60.0 66.3 5.0 54 10 57 87.1 0.107
5KP58C 64.4 78.7 5.0 58 10 49 103 0.107
5KP58CA 64.4 71.2 5.0 58 10 53 94 0.107
5KP60C 66.7 81.5 5.0 60 10 47 107 0.108
5KP60CA 66.7 73.7 5.0 60 10 52 97 0.108
5KP64C 71.1 96.9 5.0 64 10 44 114 0.108
5KP64CA 71.1 78.6 5.0 64 10 49 103 0.108
5KP70C 77.6 95.1 5.0 70 10 40 125 0.108
5KP70CA 77.6 86.0 5.0 70 10 44 113 0.108
5KP75C 83.3 102 5.0 75 10 37 134 0.108
5KP75CA 83.3 92.1 5.0 75 10 41 121 0.108
5KP78C 86.7 106 5.0 78 10 36 139 0.108
5KP78CA 86.7 95.8 5.0 78 10 40 126 0.108
5KP85C 94.4 115 5.0 85 10 33 151 0.108
5KP85CA 94.4 104 5.0 85 10 36 137 0.110
5KP90C 100 122 5.0 90 10 31 160 0.110
5KP90CA 100 111 5.0 90 10 24 146 0.110
5KP100C 111 136 5.0 100 10 28 179 0.110
5KP100CA 1111 123 5.0 100 10 31 162 0.110
5KP110C 122 149 5.0 110 10 26 196 0.112
5KP110CA 122 135 5.0 110 10 28 177 0.112
5KP120C 133 163 5.0 120 10 24 211 0.112
5KP120CA 133 147 5.0 120 10 26 194 0.112
5KP150C 167 204 5.0 150 10 19 263 0.112
5KP150CA 167 184 5.0 150 10 21 242 0.112
5KP160C 178 217 5.0 160 10 18 281 0.114
5KP160CA 178 196 5.0 160 10 19 258 0.114
5KP180C 200 244 5.0 180 10 16 316 0.114
5KP180CA 200 221 5.0 180 10 17 290 0.114
