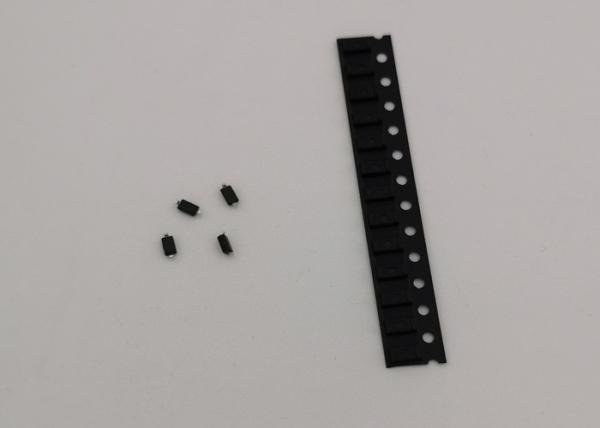

2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS
Specifications
Brand Name :
XUYANG
Model Number :
MMSZ5221BS - MMSZ5259BS
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
3000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000pcs/month
Delivery Time :
10 - 15 work days
Packaging Details :
tape in reel, 3000pcs/reel
Part Number :
MMSZ5221BS - MMSZ5259BS
Power :
350mW
Voltage :
2.4-39V
Tolerance :
±5%
package :
SOD-323
Mounting Type :
Surface Mount
Description

350mW SOD323 Package SMD Zener Diode MMSZ5221BS Thru MMSZ5259BS With 2.4 To 39 Voltage


Applications

All of the circuit board

FEATURES :

1. Planar Die Construction
2. Ultra-Small Surface Mount Package
3. General purpose, Medium Current
4. Ideally Suited for Automated Assembly Processes

MAXIMUM RATINGS

Rating at 25℃ ambient temperature unless otherwise specified

Rating Symbol Value Unit
Forward Voltage at IF =10 mA VF 0.9 V
Power Dissipation PD 200 mW
Thermal resistance junction to ambient air RthA 625 ℃/W
Junction temperature Range Tj 150 ℃
Storage temperature range TSTG -55~+150 ℃

ELECTRICAL CHARACTERISTICS

Rating at = 25 ℃ ambient temperature unless otherwise specified

Type

Number

 ​

Type

Code

 Zener Voltage Range

​Test

Current

Maximum Zener

Impedance

Maximum Reverse

Leakage Current
VZ @ IZT

IZT

 ZZT @ IZT

ZZK @ IZK

=0.25mA

IR

 @ VR
Nom (V) Min (V) Max (V)

mA

Ω

μA

V

MMSZ5221BS

C1

2.4

2.28

2.52

20

30

1200

100

1.0

MMSZ5223BS

C3

2.7

2.57

2.84

20

30

1300

75

1.0

MMSZ5225BS

C5

3.0

2.85

3.15

20

30

1600

50

1.0

MMSZ5226BS

G1

3.3

3.14

3.47

20

28

1600

25

1.0

MMSZ5227BS

G2

3.6

3.42

3.78

20

24

1700

15

1.0

MMSZ5228BS

G3

3.9

3.71

4.10

20

23

1900

10

1.0

MMSZ5229BS

G4

4.3

4.09

4.52

20

22

2000

5.0

1.0

MMSZ5230BS

G5

4.7

4.47

4.94

20

19

1900

5.0

2.0

MMSZ5231BS

E1

5.1

4.85

5.36

20

17

1600

5.0

2.0

MMSZ5232BS

E2

5.6

5.32

5.88

20

11

1600

5.0

3.0

MMSZ5233BS

E3

6.0

5.70

6.30

20

7

1600

5.0

3.5

MMSZ5234BS

E4

6.2

5.89

6.51

20

7

1000

5.0

4.0

MMSZ5235BS

E5

6.8

6.46

7.14

20

5

750

3.0

5.0

MMSZ5236BS

F1

7.5

7.13

7.88

20

6

500

3.0

6.0

MMSZ5237BS

F2

8.2

7.79

8.61

20

8

500

3.0

6.5

MMSZ5238BS

F3

8.7

8.27

9.14

20

8

600

3.0

6.5

MMSZ5239BS

F4

9.1

8.65

9.56

20

10

600

3.0

7.0

MMSZ5240BS

F5

10

9.50

10.50

20

17

600

3.0

8.0

MMSZ5241BS

H1

11

10.45

11.55

20

22

600

2.0

8.4

MMSZ5242BS

H2

12

11.40

12.60

20

30

600

1.0

9.1

MMSZ5243BS

H3

13

12.35

13.65

9.5

13

600

0.5

9.9

MMSZ5245BS

H5

15

14.25

15.75

8.5

16

600

0.1

11

MMSZ5246BS

J1

16

15.20

16.80

7.8

17

600

0.1

12

MMSZ5248BS

 J3 18 17.10 18.90 7.0 21 600 0.1

14

MMSZ5250BS

J5

20

19.00

21.00

6.2

25

600

0.1

15

MMSZ5251BS

K1

22

20.90

23.10

5.6

29

600

0.1

17

MMSZ5252BS

K2

24

22.80

25.20

5.2

33

600

0.1

18

MMSZ5254BS

K4

27

25.65

28.35

5.0

41

600

0.1

21

MMSZ5255BS

K5

28

26.60

29.40

4.5

44

600

0.1

21

MMSZ5256BS

M1

30

28.50

31.50

4.2

49

600

0.1

23

MMSZ5257BS

M2

33

31.35

34.65

3.8

58

700

0.1

25

MMSZ5258BS

M3

36

34.20

37.80

3.4

70

700

0.1

27

MMSZ5259BS

M4

39

37.05

40.95

3.2

80

800

0.1

30

Size

2.4-39V Surface Mount Smd Marking Diode MMSZ5221BS Thru MMSZ5259BS

What can we You from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
