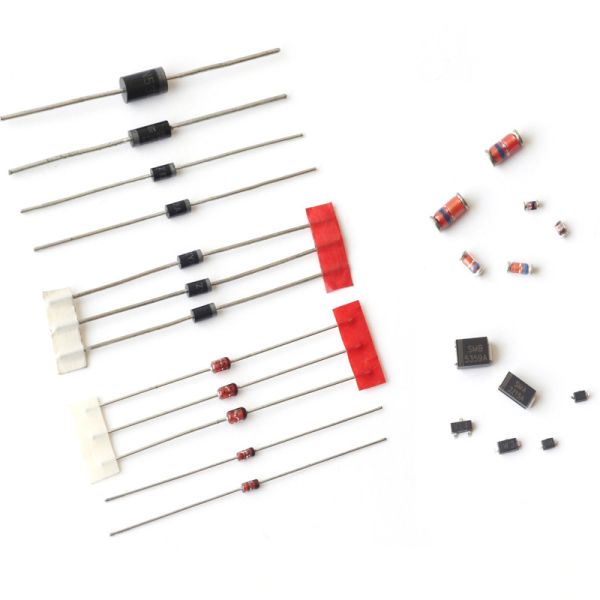

5W DIP Silicon Zener Diode 1N5333B-1N5388B For Use Unstabilizing And Clipping Circuits
5W DIP Silicon Zener Diode 1N5333B-1N5388B For Use Unstabilizing And Clipping Circuits
5W DIP Silicon Zener Diode 1N5333B-1N5388B For Use Unstabilizing And Clipping Circuits
5W DIP Silicon Zener Diode 1N5333B-1N5388B For Use Unstabilizing And Clipping Circuits
Specifications
Brand Name :
XUYANG
Model Number :
1N5333B - 1N5388B
Certification :
ISO9001/RoHS
Place of Origin :
China
Payment Terms :
T/T, Western Union, Paypal
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
50000pcs/month
Packaging Details :
tape in box, 5000pcs/box
Delivery Time :
10 - 15 work days
Part Number :
1N5333B - 1N5388B
Power :
5W
Voltage :
3.3-200V
package :
17-02 / DO-201AE
Lead Free Status :
Lead free/RoHS
Shipping by :
DHL\UPS\Fedex\EMS\sea
Description

5W DIP Silicon Zener Diode 1N5333B Thru 1N5388B With 17-02 / DO-201AE Package


Applications

For use instabilizing and clipping circuits with high power rating.

FEATURES :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current

MAXIMUM RATINGS

Rating at 25℃ ambient temperature unless otherwise specified

Rating Symbol Value Unit
DC Power Dissipation at TL = 75℃ (Note1) PD 5.0 W
Maximum Forward Voltage at IF = 200 mA VF 1.2 V
Junction temperature Range Tj -55~+175 ℃
Storage temperature range Ts -55~+175 ℃

Note :

  1. TL = Lead temperature at 3/8 " (9.5mm) from body

ELECTRICAL CHARACTERISTICS

Rating at = 25 ℃ ambient temperature unless otherwise specified

Type

Nominal Zener

Voltage

Maximum Zener

Impedance

Maximum Reverse

Leakage Current

Maximum DC

Zener Current
VZ @ IZT IZT ZZT @ IZT ZZK @ IZK IZK IR @ VR IZM
(V) (mA) (Ω) (Ω) (mA) (μA) (V) (mA)
1N5333B 3.3 380 3.0 400 1.0 300 1.0 1440
1N5334B 3.6 350 2.5 500 1.0 150 1.0 1320
1N5335B 3.9 320 2.0 500 1.0 50 1.0 1220
1N5336B 4.3 290 2.0 500 1.0 10 1.0 1100
1N5337B 4.7 260 2.0 450 1.0 5.0 1.0 1010
1N5338B 5.1 240 1.5 400 1.0 1.0 1.0 930
1N5339B 5.6 220 1.0 400 1.0 1.0 2.0 856
1N5340B 6.0 200 1.0 300 1.0 1.0 3.0 790
1N5341B 6.2 200 1.0 200 1.0 1.0 4.0 765
1N5342B 6.8 175 1.0 200 1.0 40 4.9 700
1N5343B 7.5 175 1.5 200 1.0 40 5.4 630
1N5344B 8.2 150 1.5 200 1.0 40 5.9 580
1N5345B 8.7 150 2.0 200 1.0 40 6.3 545
1N5346B 9.1 150 2.0 150 1.0 40 6.6 520
1N5347B 10 125 2.0 125 1.0 40 7.2 475
1N5348B 11 125 2.5 125 1.0 5.0 8.0 430
1N5349B 12 100 2.5 125 1.0 2.0 8.6 395
1N5350B 13 100 2.5 100 1.0 1.0 9.4 365
1N5351B 14 100 2.5 75 1.0 1.0 10.1 340
1N5352B 15 75 2.5 75 1.0 1.0 10.8 315
1N5353B 16 75 2.5 75 1.0 1.0 11.5 295
1N5354B 17 70 2.5 75 1.0 0.5 12.2 280
1N5355B 18 65 2.5 75 1.0 0.5 13.0 265
1N5356B 19 65 3.0 75 1.0 0.5 13.7 250
1N5357B 20 65 3.0 75 1.0 0.5 14.4 237
1N5358B 22 50 3.5 75 1.0 0.5 15.8 216
1N5359B 24 50 3.5 100 1.0 0.5 17.3 198
1N5360B 25 50 4.0 110 1.0 0.5 18.0 190
1N5361B 27 50 5.0 120 1.0 0.5 19.4 176
1N5362B 28 50 6.0 130 1.0 0.5 20.1 170
1N5363B 30 40 8.0 140 1.0 0.5 21.6 158
1N5364B 33 40 10 150 1.0 0.5 23.8 144
1N5365B 36 30 11 160 1.0 0.5 25.9 132
1N5366B 39 30 14 170 1.0 0.5 28.1 122
1N5367B 43 30 20 190 1.0 0.5 31.0 110
1N5368B 47 25 25 210 1.0 0.5 33.8 100
1N5369B 51 25 27 230 1.0 0.5 36.7 93.0
1N5370B 56 20 35 280 1.0 0.5 40.3 86.0
1N5371B 60 20 40 350 1.0 0.5 43.0 79.0
1N5372B 62 20 42 400 1.0 0.5 44.6 76.0
1N5373B 68 20 44 500 1.0 0.5 49.0 70.0
1N5374B 75 20 45 620 1.0 0.5 54.0 63.0
1N5375B 82 15 65 720 1.0 0.5 59.0 58.0
1N5376B 87 15 75 760 1.0 0.5 63.0 54.5
1N5377B 91 15 75 760 1.0 0.5 65.5 52.5
1N5378B 100 12 90 800 1.0 0.5 72.0 47.5
1N5379B 110 12 125 1000 1.0 0.5 79.2 43.0
1N5380B 120 10 170 1150 1.0 0.5 86.4 39.5
1N5381B 130 10 190 1250 1.0 0.5 93.2 36.6
1N5382B 140 8.0 230 1500 1.0 0.5 101 34.0
1N5383B 150 8.0 330 1500 1.0 0.5 108 31.6
1N5384B 160 8.0 350 1650 1.0 0.5 115 29.4
1N5385B 170 8.0 380 1750 1.0 0.5 122 28.0
1N5386B 180 5.0 430 1750 1.0 0.5 130 26.4
1N5387B 190 5.0 450 1850 1.0 0.5 137 25.0
1N5388B 200 5.0 480 1850 1.0 0.5 144 23.6

Size

5W DIP Silicon Zener Diode 1N5333B-1N5388B For Use Unstabilizing And Clipping Circuits

5W DIP Silicon Zener Diode 1N5333B-1N5388B For Use Unstabilizing And Clipping Circuits
