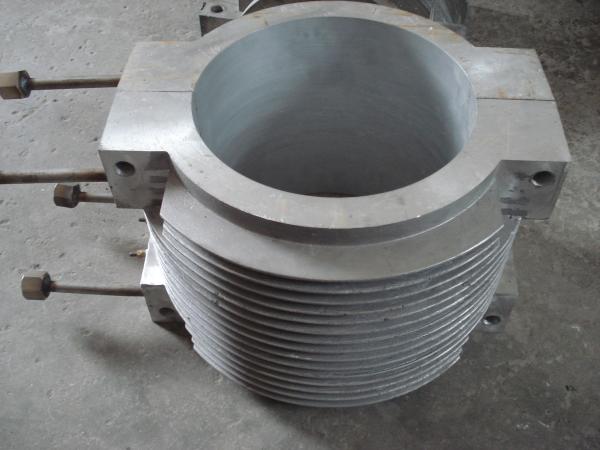

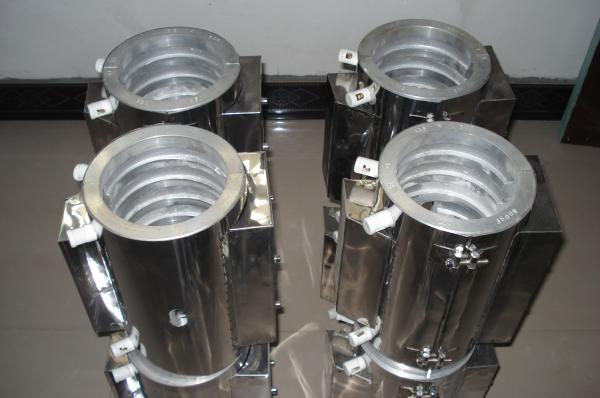

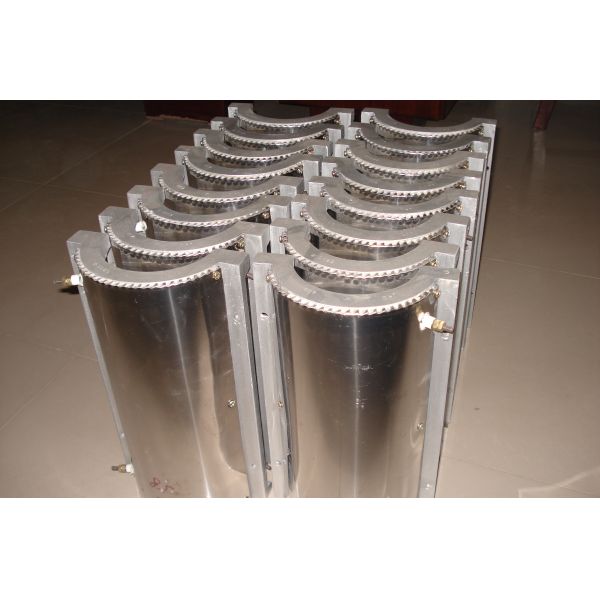

Fast Heating Electric Casting Cast Aluminum Heaters Customized 150w CE Certification
Fast Heating Electric Casting Cast Aluminum Heaters Customized 150w CE Certification
Fast Heating Electric Casting Cast Aluminum Heaters Customized 150w CE Certification
Fast Heating Electric Casting Cast Aluminum Heaters Customized 150w CE Certification
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
Wenzhou, China
MOQ :
50pcs
Payment Terms :
T/T, Western Union
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Dimension :
Customized
Power Source :
Electric
Size :
30mm-180mm
Heating Speed :
Fast Heating
Total Length :
Customized
Description

1. Description

Condition: New Type: Band Heater Power Source: Electric
Dimension(L*W*H): Customized Weight: According to your dimension Voltage: Customized
Power(W): Customized Certification: CE Warranty: 1 year
Size: 30mm-180mm Certification:: CQC;CSA;ISO;CE;UL Material:: Brass
Working Life:: 1-5years Heating Speed:: Fast Heating Total Length:: Customized
Appliance:: Injection Molding Machine/Extruder heater parts

2. Specifications

150w copper band heater
1.Certificate:UL,CE,ISO,ROHS,FCA
2.Use For injection nozzle heating
3.Fast heating&Durable
4.Long li

Electric casting 150w copper band heater

Band heater for injection molding machine ,They are designed to heat up cylindrical parts by conduction.

They are used in many manufacturing processes such as the injection, extrusion and moulding processes or other specific applications

such as tank heating and they are to be found in many industries such as the plastic processing industry, the car industry, chemical and food processing industries, etc

Table:

Model Dimension(mm) Voltage(V) Power(W) Key Technical Indexes
DT-BH-Φ45Χ50 Φ45Χ50 220 1000

1.Use condition: environment temperature -20~+60°C, Relative temperature <95%

2.Leakage current:<0.5MA

3.Insulation resistance:≥5MO

4.Ground resistance:<0.1O

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance:100-1200°C
DT-BH-Φ22Χ160 Φ22Χ160 230 1200
DT-BH -Φ40Χ40 Φ40Χ40 220 400
DT-BH -Φ30Χ50 Φ30Χ50 220 400
Note: Other models are available according to your specifications. Please refer to the Order Guide

Or Customized according to your requires.

Order Guide:

Please specify the following when ordering:

1. Diameter (mm) and length (mm) of heaters

2. Type of leads and length (mm)

3. Voltage and power density

4. Content of the stamping if needed

5. Order quantity

6. Delivery date

*It’s better to provide us with the drawings/pictures
