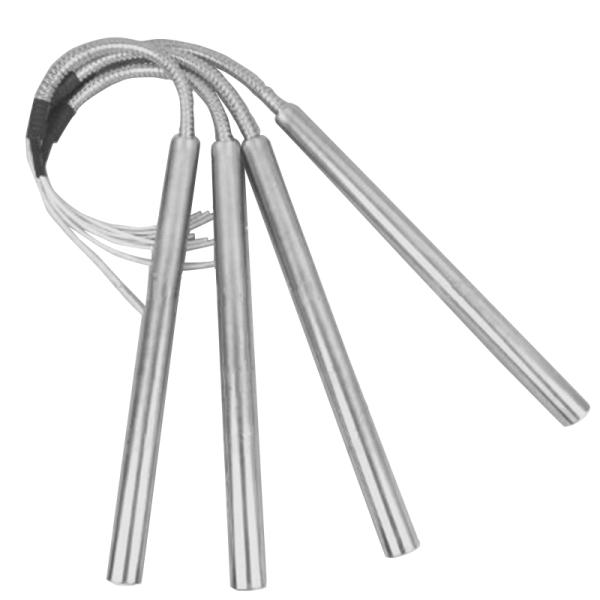

Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V
Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V
Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V
Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
Wenzhen, China
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/Month
Delivery Time :
7-15Wroking Days
Packaging Details :
Exporting Case Packing
Dimension :
Mix dia 6mm
Power :
Customized
Power Source :
Electric
Voltage :
12-480V
Type :
Air Heater
Description

1. Description

Condition: New Type: Air Heater Power Source: Electric
Dimension(L*W*H): Mix dia 6mm Weight: Customized Voltage: 12-480V
Power(W): Customized Certification: CE Warranty: 6000 hours
After-sales Service Provided: Engineers available to service machinery overseas

Cartridge heaters from GME are simply the benchmark of industry. Packing, plastic processing, food-service, and process industries alike look to our cartridge heaters as a reliable, efficient and cost-effective heat source. Swaged-in designs are made for use in applications where high density, high temperatures, and long service life are critical to reduce downtime and minimize cost.

FEATURES TYPICAL APPLICATIONS
CE component recognition available Liquid Immersion
Rugged dependable heat source Plastic Molds
Temperatures up to 820C Dies
Many diameters offered as standard Labeling

Highly compacted unit which resists

shock and vibration

 Medical Equipment
Alloy sheath for high corrosion resistance Platens
Custom manufactured to specifications Packaging Equipment
Hot Stamping
Sealing
Injection Molding

Specifications

Diameter 1/4’’ 5/16’’ 3/8’’ 1/2’’ 5/8’’ 11/16’’ 3/4’’ 7/8’’ 1’’ 6.5mm 8.0mm 10mm 12.5mm 16mm 20mm
Max volts 240 240 240 240 480 480 480 480 480 240 240 240 240 480 480
Max Amps 4.2 6.0 6.5 10.5 22.0 22.0 22.0 22.0 25 4.0 6.0 6.0 10.5 22 22
Mini watts Consult TAIYUAN for minimum wattage
Watt tolerance +5%-10% of rated wattage
Length tolerance ±2% of length, ±3/32 minimum
Watt density

=Total Wattage

Diameter x 3.14 x heated length

FACTORS FOR LONGER HEATER LIFE

1. Do not exceed recommended maximum watt density specified for

the heater size.

2. The heater sheath must fit properly into the machined hole. A tight fit

is critical.

3. Protect the heater from contaminants such as oil, grease, and

vapors.

4. Install adequate Kw to accomplish work load and make up for

heat losses.

Special modifications

In addition to the standard design, TY offers a variety of special modifications

which are available to customize the heater for your application.
Distributed Wattage:

Resistance winding can be concentrated in specific areas of the

heater for localized heat distribution.
Centerless Grinding:

Precision grinding of the heater sheath provides tighter diameter

tolerances when required.
Coating:

coating can be provided on heater sheath for applications

requiring chemical resistance.
Ground Lead-wire: Separate color coded ground wire can be provided when required.
Special Connectors: Various connectors for power leads can be provided upon request.

CARTRIDGE CARE AND MAINTENANCE
1. Store heaters in a dry area, especially during periods of high humidity.
2. Protect leads from abuse and abrasion.

3. Maintain temperature control and keep accessories in good working condition to obtain

correct operating conditions.

4. All cartridge heaters have hygroscopic tendencies and can accumulate moisture in shipping

and storage. Low heater insulation (less then 1 meg ohm) can be baked in an oven for

several hours or started at low voltage to eliminate moisture.

Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480VMultifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V
