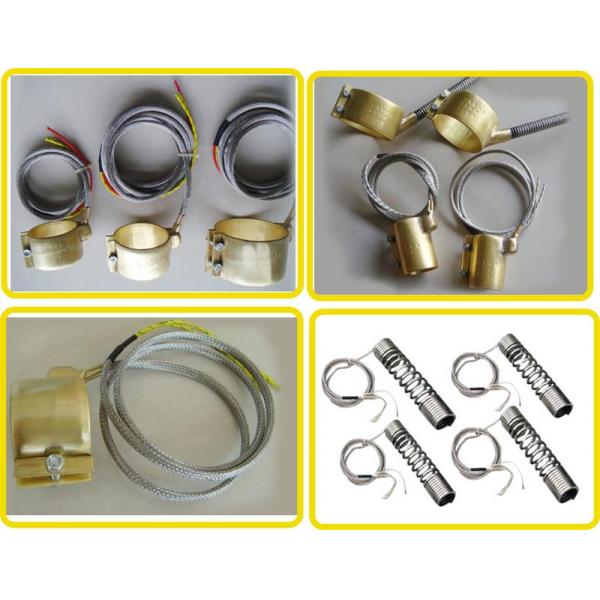

12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters
12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters
12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters
12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters
12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters
12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12-480V
Sheath material :
Stainless Steel or Nickel
Cross Section :
2.2*4.2mm
Style :
straight or coil
Lead wire :
copper, , fiberglass silicon
Coiling Scheme :
Tangential, radial exits, axial
Description

12V Nozzle band heater with built in ktype thermocouple in brass for hot runner

Description:

1) Terminal box that connect the heater

2) Flexible armor cable for lead protection is available where abrasion is a problem

3) Concentrated tightness system which ensure maximum contact of the windings

4) Inox screws with high degree of tightness so as to transport the current correct in thewinding

5) Specially treated rust-recistance steal, a of Nikel or Inox for temperatures from 480°C and 650°C correspondingly

6) Grated mica sheets type ''C'' are used for he winding and the insulation of the heaters. It provides excellent thermal conductivity and dielectric strength

7) The warming source of the heater is created by a selected nickel-chroma wire in ribbon or round form which achieves, with special winding, to create the correct appropriation of heating

8) External strip of steal-sheets from nickel or inox which covers the total width of the heater

Specification:

1) The inner profile is perfectly round,providing a perfect coupling with the nozzle.Size of the connectiong cap is minimal,giving extremely limited overall dimensions.

2) Power connection is performed by a metal braiding cabl,standard length 1m,with two nickel power leads and one galvanized-copper grounded lead.

Sheath Material

Chrome Nickel Steel
Insulators

High Grade Steatite Ceramic Insulators (High temperature)
Heat Saving Thermal Insulation Ceramic Fibre (std.)
Heating Elements (coil)

NiCr 60:16, NiCr 80:20
Nominal Wall Thickness

Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Connection

Fiber Glass Insulated- Metal Braided Flexible Cable

(std. 12" long) mounted on rigid screw post terminals
Voltage Range

110V - 440V, Single
Surface Loading

35-55W / inch2 (depending upon model & application)
Power Rating

Depending upon application
Power Tolerance

± 10%
HV Testing

1.5 Kv between heating element and sheath
Insulation Resistance (Cold) < 20 MΩ
Sheath Temperature

Up to 500°C maximum (Chrome Nickel Steel sheath)
Gap Between the Clamping Edge 5 - 10mm
Resistance

+/- 10%
Width :

Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver

PLUS

Inner Diameter

Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS


12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters

Application:

1) GME's heaters are widely used for Dies

2) GME's heaters are widely used for Cylinders and drums

3) GME's heaters are widely used for Plastic film extruders

4) GME's heaters are widely used for Injection and blow Moulding machine

5) GME's heaters are widely used for Holding Tanks

6) GME's heaters are widely used for All Plastic & Rubber Processing Machinery
