Adjustable Bayonet K type Thermocouple RTD SS304 High Accuracy Thermocouple Probe
Adjustable Bayonet K type Thermocouple RTD SS304 High Accuracy Thermocouple Probe
Adjustable Bayonet K type Thermocouple RTD SS304 High Accuracy Thermocouple Probe
Adjustable Bayonet K type Thermocouple RTD SS304 High Accuracy Thermocouple Probe
Specifications
Brand Name :
GME
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypel
Supply Ability :
100000 pcs per Month
Delivery Time :
7~20 working days after received your payment
Packaging Details :
Standard Export Packing
Product Name :
Thermocouple Probe
Calibration :
K
Probe Size :
OD 1/8''
Wire Length :
1 Meter
Insulation :
Fiberglass
Accuracy :
Class I
Probe Material :
SS304
Max.temperature :
900F or 500C
Protection Material :
Stainless Steel Braided Screen
Description

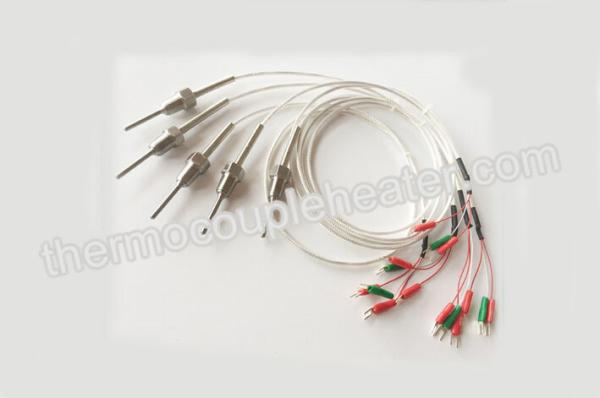

Adjustable Bayonet K type SS304 High Accuracy Thermocouple Probe

1.Specification

Probe material

SS 304
Calibration

Type K
Accuracy

Class I
Junction

Ungrounded , Ground
Wire description

fiberglass insluation and Stainless Steel Braided Screen protection
Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and 1/2” Spade lugs,

Stranded Male Plug,

Stranded Female Jack,

Mini Male Plug,

Mini Female Jack,

Accessories

None,

Bx connector,

Cable clamp

2. Feture

  1. The Adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
  2. The Adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
  3. With or without stainless steel overbraid or interlocking flexible armour cable;
  4. Wire and tube construction ;
  5. Easily replaceable and interchangeable

3. Application:

  1. Plastics and rubber industry;
  2. Dies for extrusion profiles;
  3. Direct installation into the process;
  4. Packaging industry;
  5. Compression platens;

Adjustable Bayonet K type Thermocouple RTD SS304 High Accuracy Thermocouple Probe
