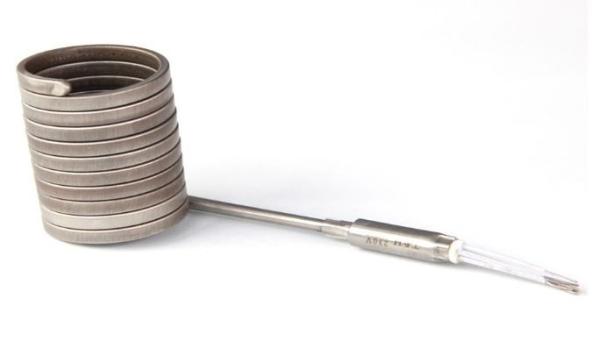

Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
Specifications
Brand Name :
GME
Certification :
CE ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union or Paypal
Supply Ability :
1000 Pieces per Week
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Standard Export Packing
Power Source :
Electric
Sheath Material :
SS304,SS310
Thermocouple :
without, with K or J type
Heating element :
OCr20Ni80
Insulation Material :
High Pure MgO
Insulation :
>5 M W
Description

Detailed product description:

Name: Band Heater, coil heater Power Source: Electric Condition: New
Dimension(L*W*H): customized Weight: 0.15kg/pc Voltage: 12V/24V/110V/120V/220V/230V, 12V-380V
Power(W): 70-3000W Certification: CE ISO Warranty: 1 year
Inner diameter: 15.8/16/20mm or customized Minimum diameter: 8mm Sheath Material: SS304,SS310
Thermocouple: without, with K or J type Heating element: OCr20Ni80 Sheath's length: 500/1000/1200/1500/2000mm
Available sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar Connector: without or with 5 pin xlr,4 pin min xlr connector Connector' color: silver or fully black

The following specification are widely applied in American market or make regular or flat coil heater for enail as request

Coil heater: 110/120V,100W/150W/200W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug.

12VDC,70W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug.

The flat coil heater: 110/120V,100W/150W/200W ,8/9/10mm ID and 25/26mm OD, with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug.

12VDC, 70W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug.

Parameters:

Sectional area 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
Minimum ID 8mm
Sheath Material SS304,SS310
Insulation Material High Pure MgO
Resistance Wire Cr20Ni80
Maximum Sheath Temperature 700℃
Die Electrical Strength 800V A/C
Insulation >5 M W
Dimensional Tolerance Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm
Wattage Tolerance +10% (+5% Available Upon Request)
Voltage 12V~380V
Wattage 70W~1000W
Build-in thermocouple power Without or with J/K thermocouple
Sheath's length 500/1000/1200/1500/2000mm
Available sheath nylon,metal braided,fiberglass ,silicone rubber, kevlar
Sheath's color standard is black,other color is also available
Connector without or with 5 pin xlr,4 pin min xlr connector
Connector' color silver or fully black

Packaging & Delivery

Packaging Details: plastic bag or carton box for 3x3mm Spring Hot Runner Coil Heater
Delivery Detail: depend on the order quantity

Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V
