6Mm Diameter Mineral Insulated Thermocouple Cable SS316/310/ Inconel 600
6Mm Diameter Mineral Insulated Thermocouple Cable SS316/310/ Inconel 600
6Mm Diameter Mineral Insulated Thermocouple Cable SS316/310/ Inconel 600
6Mm Diameter Mineral Insulated Thermocouple Cable SS316/310/ Inconel 600
Specifications
Brand Name :
GME
Model Number :
Type K, J
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
10000m/month
Delivery Time :
7-10 days
Packaging Details :
carton
Material :
Cr20 Ni80
Usage :
Industrial area
Mod Type :
TypeK, J, E
Theroy :
Temperature controller
Diameter :
6mm
Wire Number :
2 conductors
Temperature :
0℃ to 900℃
Compensation wire :
1000mm
Description

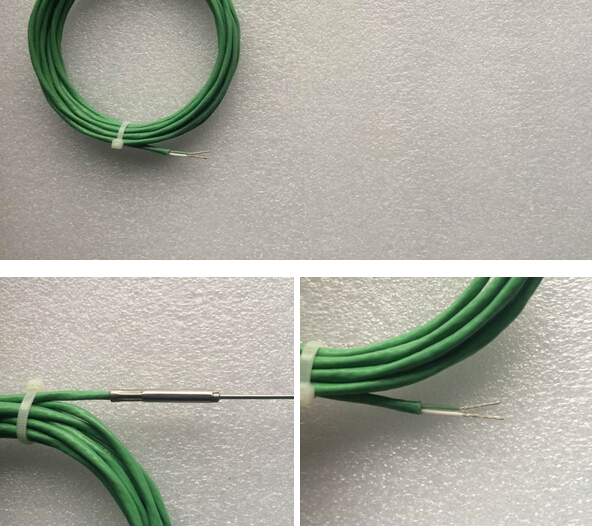

6mm diameter Mineral insulated thermocouple in SS316/310/Inconel 600 with 1000mm wire

Description:

1) Thermocouple Cables are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.

2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature,


3) GME providing Thermocouples are manufactured in different combinations of metals. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.

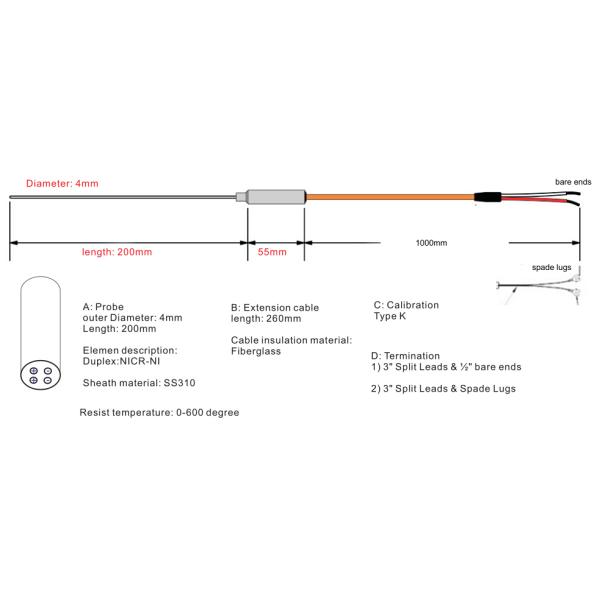

Specification:

1.Graduation Mark: K; ( N,J,T,E type available)

2.Wire number: Duplex type( 4 cores);

3.Material of the outer protection tube: A-304/321(0Cr18Ni9) ;

4.Diameter of outer tube: 4.5mm; (Diameter from 0.5mm to 8.0mm)

5.Thickness of outer tube: 0.52mm;

6.Inner core element: NiCr/NiSi;

7.Diameter of core wire: 0.67mm

Performance Capabilities

Conductor
material

Wire

Calibration

 Accuracy
Class Class
Accuracy Temperature range() Accuracy Temperature range()
Ni Cr-Ni Si 1.5
or
0.4%t		 -40-1000 2.5
or
0.75%t		 -40-1000
Ni Cr Si-Ni Si -40-1100 -40-1200
NiCr-Konstantan -40-800 -40-800
Fe-Konstantan -40-750 -40-750
Cu-Konstantan 1 or
0.4%t		 -40-350 1.5 or
0.75%t		 -40-350
Pt Rh 10-Pt 1or
1+t-1100× 0.003		 0-1600 1.5
or
0.25%t		 0-1600
PtRh 13-Pt 0-1600
Pt Rh30-PtRh 6

600-1700

6Mm Diameter Mineral Insulated Thermocouple Cable SS316/310/ Inconel 600

6Mm Diameter Mineral Insulated Thermocouple Cable SS316/310/ Inconel 600

Application:

Best suited to High-temperature stationary surfaces

Automotive industries
Chemical and petrochemical industries
Energy and power plant technology
Heating, ventilation, air-conditioning
Machinery, plant and tank measurement
Plastics and rubber industries
Power and utilities
Pulp and paper
Water and wastewater treatment

Package and Delivery:

Packaging Details: Carton box package. As the order quantity and customer requirement.

Delivery Detail: By sea/ air. About 7 days, as the order quantity.
