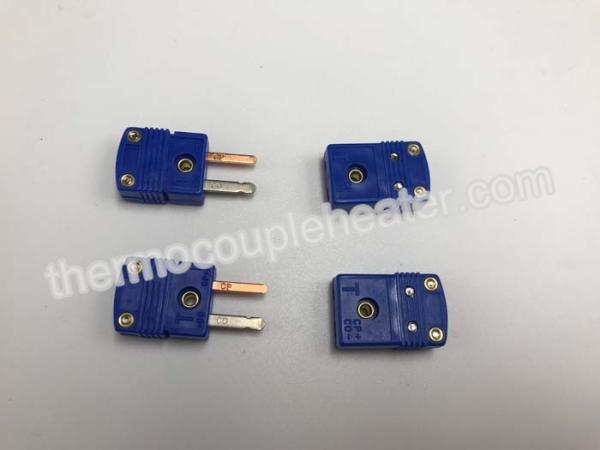

Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color
Specifications
Brand Name :
GME
Model Number :
Type T Miniature Male And Female Connectors
Certification :
CE & ISO
Place of Origin :
China
MOQ :
100 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P, L/C, Paypal
Supply Ability :
25,000pcs per month
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Exported Case Packing
Product Name :
Type T Miniature Male And Female Connectors
Temperature range range :
0--600 centigrade
Materials :
Nickel-plated iron
Types :
K, S, N, J, T, E
Usage :
Industrial, thermocouple Accessories
color :
yellow, black, white,
Conductor material: :
Chromel, Alume
Application :
Industria
Description

Thermocouple Componnets Type T Miniature Male And Female Connectors


1. Description

Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.

2. Characteristics

  • Solid pins and hollow pins are both available, offer good contact and competitive price.
  • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
  • Thermoplastic body and ceramic material body are both available.
  • Original thermocouple alloy material pins, and spring loaded inserts.
  • Pins are polarized
  • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
  • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.


3. Thermocouple Connector Parameter.


Wire size

  • Accepts wires from 0.2 mm to 2.0 mm.
  • Maximum cable diameter 8.0 mm.


Max. Temperature

  • 200 Deg. C for thermoplastic body
  • 650 Deg. C for ceramic body

Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color

Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color

Mark

Material

Color

K

Nickel chrome - nickel silicon

yellow (ANSI), green (IEC)

J

Iron-copper nickel

Black

N

Silicon nickel chrome - nickel silicon magnesium

Orange

T

Copper - copper nickel

blue

E

Copper nickel- chrome nickel

purple

R/S

Copper - copper nickel

green

Type T Miniature Male And Female Connectors With Nickel - Plated Iron Materials , Blue Color

4. Thermocouple Connector Application


This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


5. Thermocouple Connector Connector

  • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
  • Low MOQ: It can meet your promotional business very well.
  • OEM Accepted : We can produce any your design as long as you provide us the drawing.
  • Good Service : We treat clients as friend.
  • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
