hot runner coil heater with thermocouple J / K 150mm stainless steel sheath
hot runner coil heater with thermocouple J / K 150mm stainless steel sheath
Specifications
Brand Name :
GME
Model Number :
Coil Heater
Certification :
ISO and CE
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
7-15days
Packaging Details :
Standard Export Packing
Power Source :
Electric
Dimension(L*W*H) :
Customized
Voltage :
220-380 V
Warranty :
1 year
Description

hot runner coil heater with thermocouple J / K 150mm stainless steel sheath

GME manufactures high quality minitubular heaters that assure the best with respect to safety and performance.

Minitubular heater owes it importance to his great versatility; the possibility to reach high working temperatures in small spaces allows to support the most difficulit needs. GME minitubular heater can be manufactured with differents lengths, powers and sections, and are avaliable from stock also with thermocouple built-in (type J).

Technical key features:

Voltage: up to 250 V

High voltage flash test (cold): 800 V (AC)

Insulation resistance (cold): > 5 MΩ for 500 V (DC)

Leakage current (cold): < 0.5 mA for 253 V (AC)

Surface temperature: max. 750°C

Length : max. 3000 mm

length tolerance: ± 5%

Diameter tolerance:± 0.15 mm

Leads: PTFE insulation, heat resistant up to 260°C

Power tolerance (cold) Standard:±10%

On request: ± 5%

Sheath material: quality 1.4541

Power density: max. 15 W/cm²

Resistance per meter heated length: 20 to 1400Ω

Thermocouple: type J / K

Test Following to EN 60335/2/11 & EN 60204-1

Design Features:

1. High temperatures resistance

2. Unheated straight section

3. Precise temperature control 4. Fast response

5. Choice of lead orientation 6. Choice of lead protection

7. Longer heat lifetime 8. Round, square and rectangular cable

9. High watt densities 10. Rugged, durable construction

11. Available with built-in thermocouple 12. Made to customers' requirements

Typical Applications:

1. Injection moulding machine nozzle 2. Hot runner nozzles & Bushings

3. Packaging machineries 4. Hot runner injection moulds

5. Injection & Blow moulding machine nozzles 6. Hot runner manifolds

Pictures

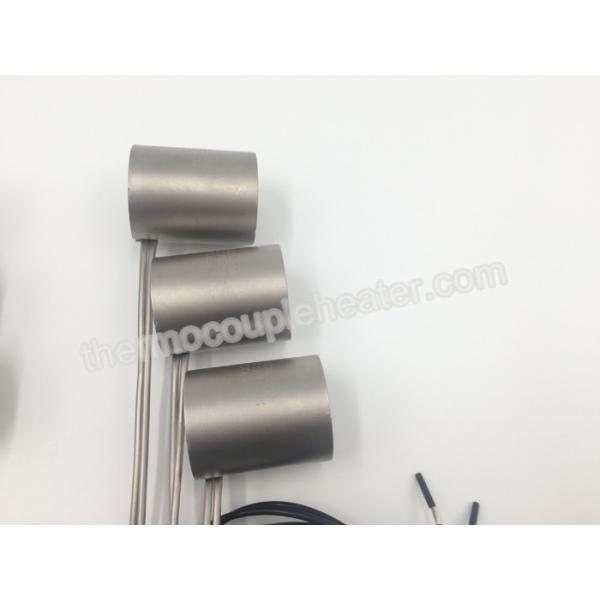

hot runner coil heater with thermocouple J / K 150mm stainless steel sheath
