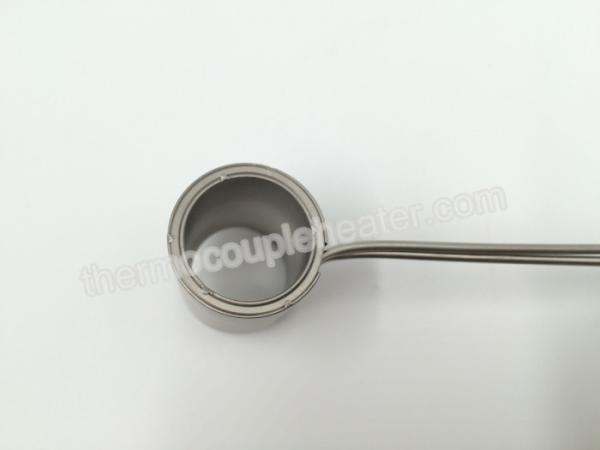

230V CE certified coil heaters Inside and outside two layer sheath
230V CE certified coil heaters Inside and outside two layer sheath
Specifications
Brand Name :
GME
Model Number :
Coil Heater
Certification :
ISO and CE
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
7-15days
Packaging Details :
Standard Export Packing
Power Source :
Electric
Dimension(L*W*H) :
Customized
Voltage :
220-380 V
Warranty :
1 year
Description

hot runner coil heaters with 230V CE certified Inside and outside two layer sheath

Coil heater is one kind of tubular electric heating elements. These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like, it can be used to heat still or flowing air, water, oil,nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long heat lifetime, high thermal efficiency, reliable and safe operation and so on.

Standard Specifications and Tolerances of Coil Heater:

Electrical Dimensional

Resistance Tolerance: ±10% Standard Square Cable: 0.125", 0.134" square

Wattage Tolerance: ±10% Standard Rectangular Cable: 0.110" × 0.160"

Maximun Amperage: 20 Amps Standard Round Cable Diameters: 0.115", 0.120", 0.125"

Standard Voltage: 120 or 240 Volts 0.132", 0.153", 0.163"

Cable Diameter Tolerance: ±0.005

Standard Potting Adapter: 5/16" Diameter, 1/2" Diameter

Standard Coil I.D: 3/8"—2-1/2"

Coil I.D. Tolerance: 3/8" to 3/4": +0.000", -0.020"

7/8" to 1-1/4": +0.000", -0.030"

1-1/2" to 2-1/2": +0.000", -0.060"

Coil Width (length): Up to 12" on 3/8" to 3/4" I.D.

Up to 16" on 7/8" to 1-1/4" I.D.

Up to 18" on 1-1/2" to 2-1/2"

Coil Width Tolerance: 0"—6": +0, -1/8"

6"—12": +1/8", -1/4"

12"—18": ±1/4"

Higher or lower voltages and other dimensions aplicable for specific heater designs; consult Laier with your requirements.

Design Features:

1. High temperatures resistance

2. Unheated straight section

3. Precise temperature control 4. Fast response

5. Choice of lead orientation 6. Choice of lead protection

7. Longer heat lifetime 8. Round, square and rectangular cable

9. High watt densities 10. Rugged, durable construction

11. Available with built-in thermocouple 12. Made to customers' requirements

Typical Applications:

1. Injection moulding machine nozzle 2. Hot runner nozzles & Bushings

3. Packaging machineries 4. Hot runner injection moulds

5. Injection & Blow moulding machine nozzles 6. Hot runner manifolds

Pictures

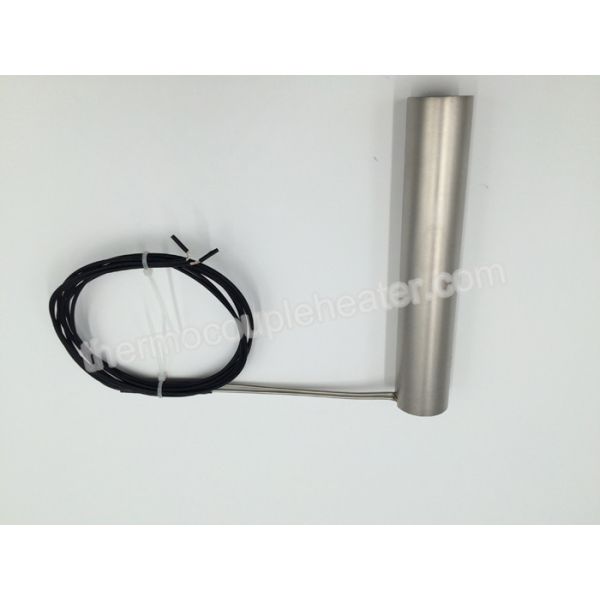

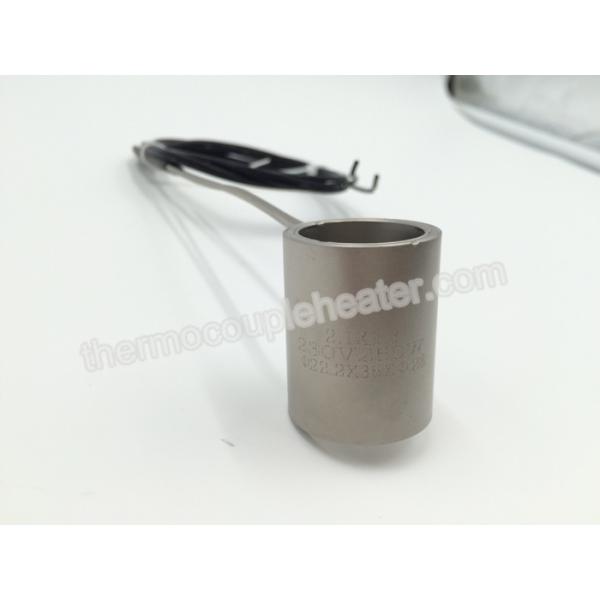

230V CE certified coil heaters Inside and outside two layer sheath

230V CE certified coil heaters Inside and outside two layer sheath
