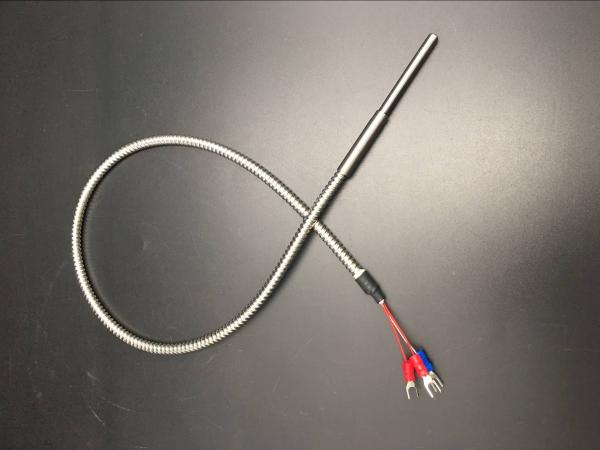

Stainless Steel Pt100 RTD Temperature Sensor 50mm Probe AISI 304 Electronics Housing
Stainless Steel Pt100 RTD Temperature Sensor 50mm Probe AISI 304 Electronics Housing
Specifications
Brand Name :
GME
Certification :
ISO&
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiatable
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
5000pcs/month
Delivery Time :
15 days after receiving full payment
Packaging Details :
stanard export carton
Dia of probe: :
6mm
Type: :
PT-100
Lenght of probe: :
50mm
diameter :
6mm
material :
stainless steel
name :
6mm diameter pt100 stainless steel temperature sensor with metal horse tube
Description

PT100 stainless steel temperature sensor with metal horse tube

Features

  • Robust and compact
  • All stainless steel
  • Hygienic connections
  • Pt100 3- or 4-wire
  • Vibration resistant

Technical details

Measuring range sensor -50 °C…+200 °C or -200 °C…+400 °C
Pt100 3- or 4-wire single or duplex, 1/3 DIN class B, option 1/5 or 1/10 DIN
Insertion dimensions Diameter 3….20 mm, length 5 mm…4 m
Process connections Threaded, hygienic connections EHEDG en 3A, flanges
Output 3- or 4-wire Pt100 or head mounted transmitter
Head mounted transmitter 4-20 mA 2-wire, option ATEX Ex-ia, HART protocol, Profibus PA, accuracy 0,1 %
Electronics housing AISI 304 with bajonet or scew cover
Protection IP65 and IP68 (screw cover)
Ambient temperature -20 °C...+70 °C
Wetted parts AISI 316, other materials on request
Options Exchangeable element, extended neck length
Special designs

F.e. duplex housing with 2 transmitters, ambient sensors, angled insertion, bendable insertion
