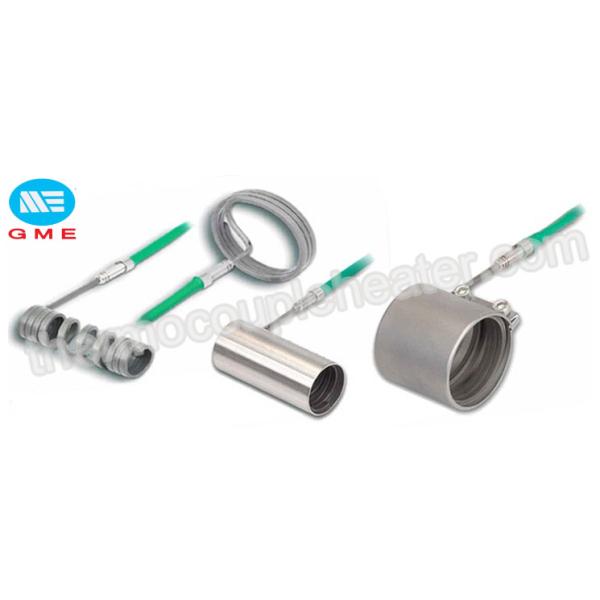

Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine
Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine
Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine
Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine
Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine
Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Price :
Negotiable
Power Source :
Electric
Dimension :
Customized
Voltage :
380V, 600w
Sheath material :
Stainless Steel or Nickel
Cross Section :
2.2*4.2mm
Style :
straight or coil
Lead wire :
copper, , fiberglass silicon
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass and stainless steel
Application :
Industry heating production
Description

Hot runner spring brass coil nozzle heater heating element for fog machine

Description:

1) Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters,our production length in 400-3000mm is mainly used for hot runner mold ,as well as other precision heating system.

2) Spring heating ring external using high quality Ni-Cr steel tube,it has glass fiber package which canprevent leakage,the external use of high purity magnesium oxide, hightemperture resistance wire, and first-class manufacturing technology.

3) These Heaters can be constructed with or without built in thermocouples. Its high working temperature ,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,external can reuse.

.

Specification:

  • 3.0 x 3.0, 3.30 x 3.30, 4.50 x 4.50 mm
  • 4.20 x 2.20, 4.50 x 2.50, 3.20 x 1.80, 1.30 x 2.30 mm
  • 3.30, 1.80, 1.60, 1.35 mm
  • Any other cross sections can be manufactures and supplied on request.

Name of product Hot runner spring brass coil nozzle heater heating element for fog machine

Insulation material

 compressed MgO imported from japan
Maximum sheath temperature of heating element

max.750℃/1380℉

with reflection tube

max.650℃/1200℉
Maximum connection head temperature max.260℃/500℉
Cross-section

Round Dia:1.8mm;3.3mm;3.8mm;4.2mm;5.5mm

Square:3.2×3.2mm;3.6×3.6mm;

Rectangular:1.4×2.1mm;2.2×4.2mm;2.3×4.3mm;4×6mm;
Connection voltage

230 V standard,250 V max

hotspring Maxi 440 V max
Wattage tolerance ±10%
High voltage test

min.800 VAC

hotspring Maxi 1250 V
Insulation Resistance ≥5MΩ at 500VDC
Leakage current ≤0.5mA at 253 VAC
Max.total length straight max.3000mm/118inch
Coiled inner Φtolerance

up toΦ12mm:-0.05/-0.20mm up to 0.47inch:-0.2/-7.9mils

up toΦ30mm:-0.10/-0.30mm up to 1.18inch:-3.9/-11.8mils

up toΦ40mm:-0.20/-0.40mm up to 1.57inch:-7.9/-15.7mils

with reflection tube:+0.05/+0.15mm with reflection tube:+2.0/+5.9mils
Built-in thermocouple With or without J/K TC(Available)
Coiled length tolerance ±1.5% least ±1mm/0.039inch

Spring Brass Coil Nozzle Heating Element Customized Dimension For Fog Machine

Applications

---Hot runner system

---Spring coil heater

---Plastic injection molding

---Packaging Machinery

---Medical Equipment

---Casting Process

---Other electricc heating industry

---Hot nozzle
