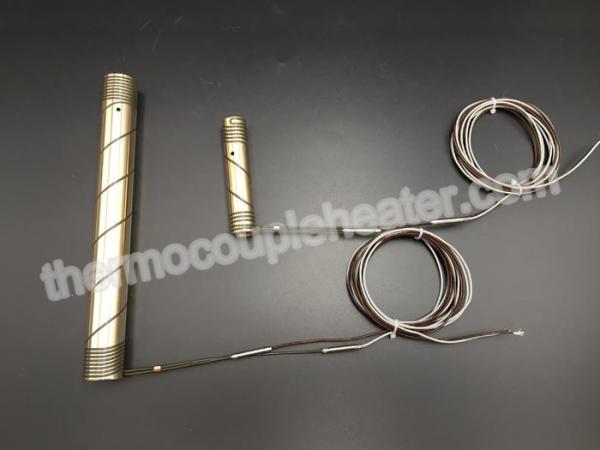

Pressed In Brass Coil Heater With Thermocouple J Type For Hot Runner System
Pressed In Brass Coil Heater With Thermocouple J Type For Hot Runner System
Specifications
Brand Name :
GME
Certification :
CE & ISO
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
10,000 pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Standard Export Packing
Name :
Pressed in Brass Coil Heater With Thermocouple J For Hot Runner System
Application :
Hot Runner
Material :
Brass
Lead Wire Length :
1000mm or customize
Warranty :
1 Year
Insulated Material :
Comressed MgO
Moistureproof :
IP65
Cross Section :
1.5mm
Thermocouple :
Type J
Tube Length :
78 mm
Form :
Straight or Coiled
Type :
Tangential, Radial Exits, Axial
Wire :
Braided Copper Tinned Conductor etc
Wire Insulation :
etc.
Protection Sleeves :
Fiberglass, Silicon, Braided Metal Screen etc
Description

Pressed in Brass Coil Heater With Thermocouple J For Hot Runner System

1. Introduction

Pressed in brass coil heater can be made of various cross section heating filaments, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields. Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.

2. Characteristics

1) Very good performance of the heating uniformity in the heating area.

2) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.

3) The moisture-proof is IP65

3. Parameter

Spring coil heater (H series) 3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7		 Φ3.0 Φ4.0 Φ5.0 3.5x3.5
4.0x4.0		 5.0x5.0
Voltage 220V,230V,240V
Power tolerance 115W-200W +/-10%
Power tolerance 201W-2000W +5%-10%
Out jacket length 30mm~280mm
Diameter of the inner sleeve/wrapped diameter 10mm~42mm
Unheating length 45mm
Max power density 9W/cm²
Heating Length tolerance +/-0.05mm
Unheating length tolerance +/-2.5%
Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm
Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm
Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm
Tolerance cross section +/-0.15mm +/-0.20mm
Thermocouple K,J,E None
Material 304,321,316
Maximum working temperature 650℃
Die electrical strength 800V 1000V

4. Application

hot runner system

plastic industry

packaging machinery

medical equipment

casting process

other electric heating industry
