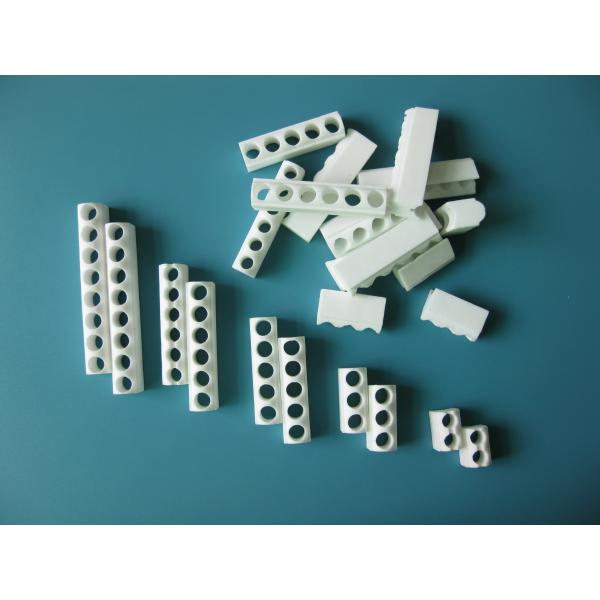

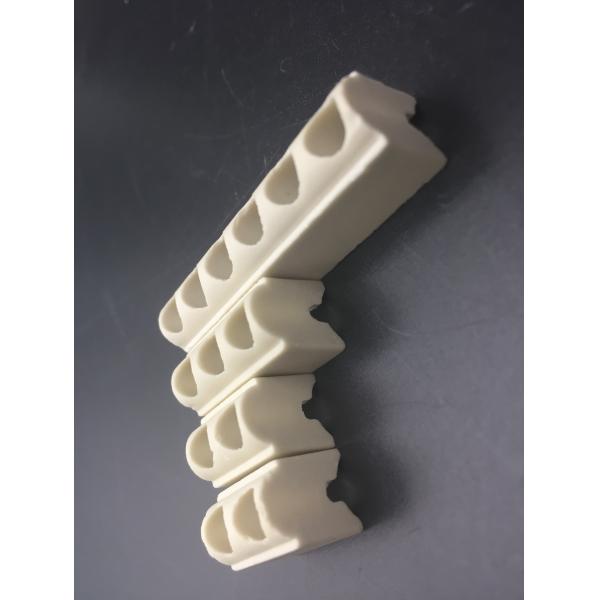

Electrical Heating Thermocouple Components Steatite Ceramic Insulator
Electrical Heating Thermocouple Components Steatite Ceramic Insulator
Electrical Heating Thermocouple Components Steatite Ceramic Insulator
Electrical Heating Thermocouple Components Steatite Ceramic Insulator
Specifications
Certification :
CE & ISO
Place of Origin :
wuhan, China
MOQ :
2000 pcs
Payment Terms :
L/C, T/T
Supply Ability :
2,500,000pcs per month
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Carton/Pallet
Type :
Electrothermal Ceramics
Material :
Steatite
Color :
White
Usage :
Industrial, Thermocouple Accessories
Temperature Range Range :
0--1300 Centigrade
Description

Electrical Heating Thermocouple Components Steatite Ceramic Insulator

Description :

Material : Steatite Ceramics /C221 Ceramics /High Frequency Ceramics

Producing Method: Hot pressing /Dry pressing

Color : White

Packing :Carton /Pallet/Wooden case (Accroding to clients requirement )

Delivery time : Depend on client’s requirement product.

Items Design: According to client’s drawing or samples

Steatite Ceramics Technical Parameter

Item Test Condition Unit &Symbol Steatite Ceramic/C221
Mainly Content Steatite
Bulk Density g/cm3 ≥2.6
Max.Using Tempertature ≥1000°C
Water Absorption % 0
Hardness HRA ≥75
Compressive Strength 20° C MPa ≥80
Toughness Mpa ≥120
Dielectricity constant 1MHz.20°C ετ 5.5
Dielectric strength KV/mm 18
Volume Resistivity 20°C Ω.cm20°C > 1012

Steatite is used to support heating elements in electric heaters, toasters, and ovens.

Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.

Steatite ceramic parts are usually small and are formed from dry powder in a compaction press. The parts are then fired in the kiln. Diamond abrasives are used to grind parts to size for high tolerance applications.

Application :

Electric appliance industry/Automotive industry/Mechanical industry

Engineering industry/Electrical heating element industry/LED Lighting Industry

Electrical Heating Thermocouple Components Steatite Ceramic Insulator

Electrical Heating Thermocouple Components Steatite Ceramic Insulator

Electrical Heating Thermocouple Components Steatite Ceramic Insulator
