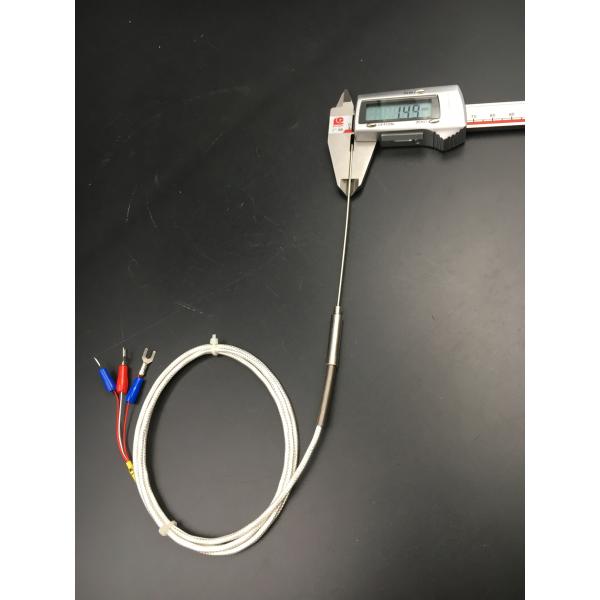

Thermal Resistance Rtd Pt100 Temperature Sensor Customized With Diamter 1.5mm
Thermal Resistance Rtd Pt100 Temperature Sensor Customized With Diamter 1.5mm
Specifications
Brand Name :
GME
Certification :
CE& ISO
Place of Origin :
China
MOQ :
50PCS
Price :
negotiate
Supply Ability :
5000pcs/month
Delivery Time :
10 working days
Packaging Details :
export carton
Diameter :
1.5mm
Pairs quantity of element :
Simplex/duplex
Heating Element :
Nichrome Resistance
Feature :
Economical
Probe length :
custom
Name :
Thermocouple RTD
Description

Temperature sensor PT100 thermal resistance RTD with diamter 1.5mm

composition
The outer appearances of the sheath platinum RTD are quite different according to their different use requirements. But their basic structures are approximately the same . It is usually composed of the main components such as sheath platinum RTD thermosensitive elements, mounted fixed devices, connection boxes and so on.

  1. Sheath platinum RTD thermosensitive elements: it is a solid substance combined by metal sleeve, unground(commonly the magnesia poweder),lead wire,platinum RTD components.
  2. For installing the setting device, its structural form may be divided into non-fixing device, fixed cutting sleeve flange, fixed compressed flange, flexible compressed flange etc.
  3. Connecting method: its structure may be divided into non-connection block type,easy terminal block type, anti-splash junction block type , water-proof wire connecting block type, explosion isolating terminal block type, socket type and so on.

Working Principle:
Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor, temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal. The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.

Measuring Range and Accuracy:

Conductor
material

CalibrationAccuracy
ClassⅠClassⅡ
AccuracyTemperature range( °C )AccuracyTemperature range( °C )
NiCr-NiSiK

±1.5°C
Or
±0.4%|t|

-40-1000

±2.5°C
or
±0.75%|t|

-40-1000
NiCr Si-NiSiN-40-1100-40-1200
NiCr-KonstantanE-40-800-40-800
Fe-KonstantanJ-40-750-40-750
Cu-KonstantanT

±0.5°C or
±0.4%|t|

-40-350

±1°C or
0.75%|t|

-40-350
PtRh10-PtS

±1°C or
±[1+ ( t-1100 ) × 0.003]

0-1600

±1.5°C
Or
±0.25%|t|

0-1400
PtRh13-PtR0-1600
PtRh30-PtRh6B————

600-1700



Thermal Resistance Rtd Pt100 Temperature Sensor Customized With Diamter 1.5mm
