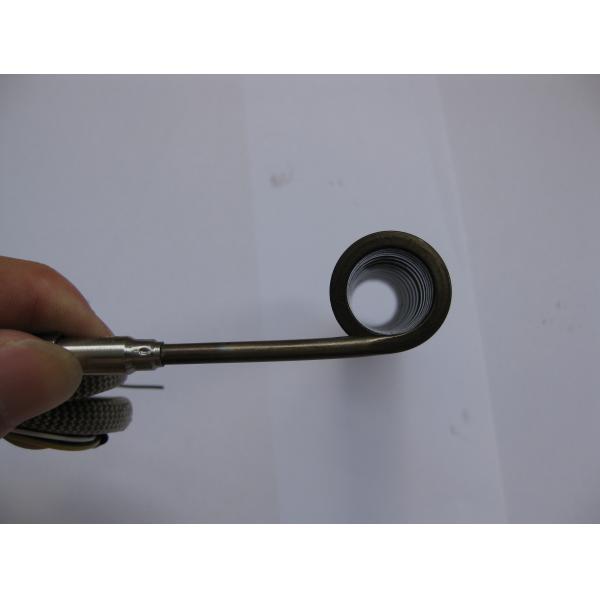

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater
Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater
Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater
Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater
Specifications
Certification :
CE(LVD EMC) RoHS ETL
Place of Origin :
Wenzhou, CHINA
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 pcs per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Packing
Power(W) :
customizable
Material :
Stainless Steel
Power Source :
Electric
Voltage :
customizable
Usage :
hot runner
Description

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater

Name of product Electric D-nail/Enail Heating unit
Inner Diameter of coiled heater 8/10/14/16/18/20mm ( + 0.05mm)
Coil Height 13.3mm/12.7mm ( + 0.05mm)
Flat Coil

ID9mm,OD26mm

ID10mm,OD27mm ( + 0.05mm)
Voltage 12v;24v;120v;220v
Wattage 100w;120w;150w;250w
Cross-section 3x3mm;2.2x4.2mm
Thermocouple K or J type
Connector plug Xlr female and male 5 pin
Sleeve material kevlar/fiberglass(Fashional)
Sleeve color red,black,yellow,green,blue,and black with yellow strip
PID Temperature controller L125xW90xH35mm
Product Description

Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.

Typical Applications :Plastic Die Applications;Blow Molding Machine ; Extrusion ;Hot Runner Systems ;Injection Molding ; Thermoforming and etc.

Specification:

Name of product Hot runner heater
Inner Diameter of coiled heater 8-38mm( + 0.05mm)
Coil style Length 40-200mm (+ 0.5mm)
staright style length 200-3000mm (+ 0.5mm)
Cross-section

Round Dia.3mm;3.3mm;3.5mm

Square: 3x3mm;3.3x3.3mm,4x4mm,

Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
Tube Material SUS304/SUS/310S/Incoloy800
Tube color sliver or annealed black
Insulation High pure Mgo
Inner heating element NiCr8020
Voltage 12v;24v;110v;220v;240v;380v
Wattage 200-3000w( 6.5W/CM2 ) + 5% tolerance
Max. Temperature: 650°C
Built-in thermocouple with or without J /K TC(Available)
Delivery Time

3-5 days(10-500pcs)

7 days(more than 500pcs)

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater
