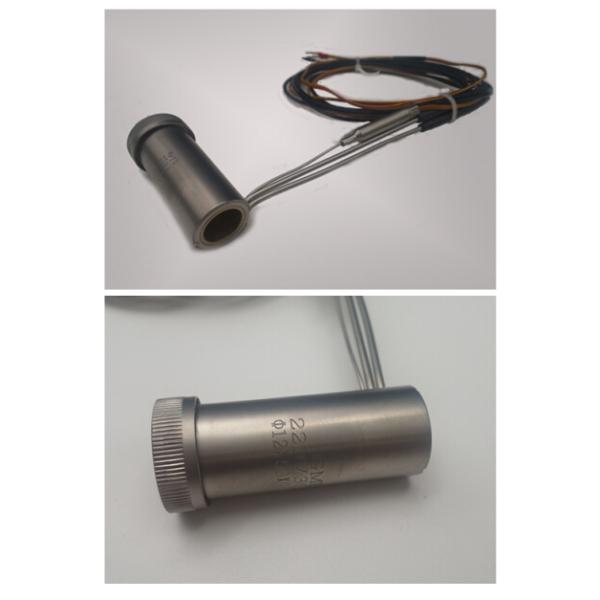

Industry Electric Hot Runner Injection Mold Heater High Temperature
Industry Electric Hot Runner Injection Mold Heater High Temperature
Industry Electric Hot Runner Injection Mold Heater High Temperature
Industry Electric Hot Runner Injection Mold Heater High Temperature
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12-480V
Sheath material :
Stainless Steel or Nickel
Cross Section :
2.2x4.2mm;3x3mm;4x4mm..
Style :
straight or coil
Lead wire :
copper, , fiberglass silicon
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass and stainless steel
Description

Industry Electric Hot Runner Injection Mold Heater High Temperature

Description:

1) Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.
2) These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.
3) These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.
COIL HEATER - APPLICATIONS:
1.Hot Runner & Bushings

2.Tube Extrusion

3.Pipe Forming

Specification:

Standard sizes available with various cross section

Various Watt Density option available

Designed for even heat profile

Precision fit on Hot Runner Nozzles

Highly Non-corrosive

Choice of Terminal Exits

Advanced Thermal Engineering

Available with in built Thermocouple

Features:

1.voltage and power according to your requirement.

2. various sizes of cross section, including 4.2*2.2mm, 4*2mm, 3.2*1.8mm, 4*4mm, 3.5*3.5mm, 3*3mm and other specificaitons

3.high watt density--25w/sq.cm, low watt density--5w/sq.cm, Temperature:650 degree

4. Material: stainless steel

5.can build in thermocouple according to your requirement.

Name of product Hot runner heater
Inner Diameter of coiled heater 8-38mm( + 0.05mm)
Coil style Length 40-200mm (+ 0.5mm)
staright style length 200-3000mm (+ 0.5mm)
Cross-section

Round Dia.3mm;3.3mm;3.5mm

Square: 3x3mm;3.3x3.3mm,4x4mm,

Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
Tube Material SUS304/SUS/310S/Incoloy800
Tube color sliver or annealed black
Insulation High pure Mgo
Inner heating element NiCr8020
Voltage 12v;24v;110v;220v;240v;380v
Wattage 200-3000w( 6.5W/CM2 ) + 5% tolerance
Max. Temperature: 650°C
Built-in thermocouple with or without J /K TC(Available)
Delivery Time

3-5 days(10-500pcs)

7 days(more than 500pcs)

Industry Electric Hot Runner Injection Mold Heater High Temperature

Application:

1. Caustic Cyanide used in gold processing

2.Hot water storage

3.Asphalt Wax

4.Caustic solutions Detergent

5.Sterilizing equipment

6.Heating oils

7.Plastic processing&packaging machinery

8.Ovens&dryers

9.Dies&Tools

10.Water& Oil heating appliances

11.Vending machines

12.Kitchen equipments

13.Medical equipments

Payment Terms and Shipping:

7 working days if uugent can be negotiable

Express: UPS, FEDEX, DHL, TNT, EMS, ect

Air shipping: Please choose your convenient shipping method according your detail requirement.

Sea shipping: large quntity order

Normally, it will take around 2--5days from China to destination country.
