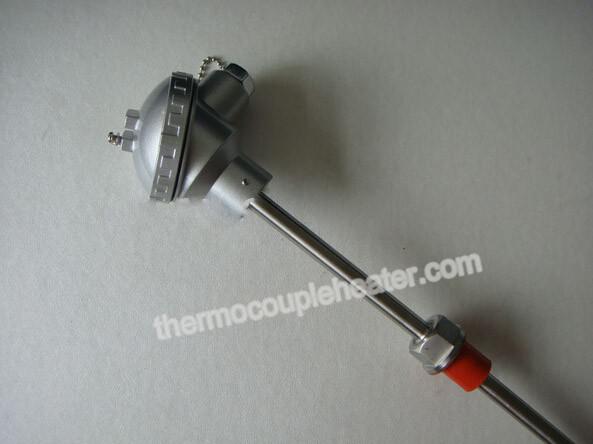

Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection

Description:

1) A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.

2) The simplest thermocouple is made using a bare wire configuration , that is two thermoelements joined at one end and directly exposed to the atmosphere of the operating environment.The operating environment can be an oxidizing, reducing or inert atmosphere and constrains on the use of thermoelements in some atmospheres can exist because of lack of compatibility between the materials the thermoelements are made of and the gases. For instance W/W-Re thermocouples cannot be used in oxidizing atmosphere because, above 600°C, tungsten reacts easily with oxygen producing volatile oxides: the thermoelements can be rapidly damaged and fail.

Specification:

1.length 200/500/800/1000mm

2.ungrounded probe,

3.type pt100 ,

4.sheath 304 SS

5.sheath diameter 6mm

6.No fixing device

1.Type:PT100 DIN Standard Class A and B

2.Head :Water proof and explosion-proof

3.Material:Head -cast Aluminum /Sheath:SS304,SS316,1Cr18Ni9Ti

4.Sheath dimaeter:φ5.0mm,12,16,20 can customize

5.Connection Type:1/2BSP,1/2NPT,G1/2,G3/4,1/2 and so on

Application:

As sensor for temperature measuring and regulation, industrial-purpose thermocouple is usually connected with display meter and other meters to directly measure temperature of liquid, vapor, gas and solid surface ranging from 40°C to 1700°C.

A. Widely Used In Science and Industry

B. Temperature Measurement for Kilns

C. Gas Turbine Exhaust Application

D. Used For Diesel Engines and Other Industrial Processes
