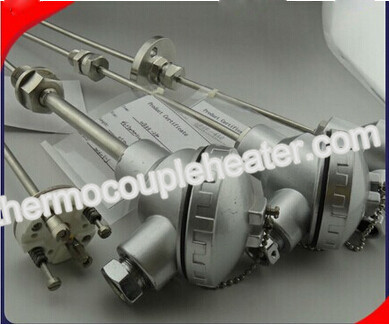

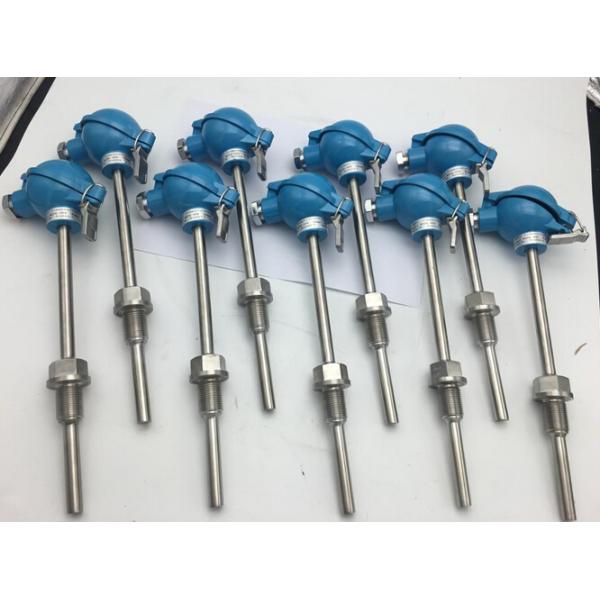

Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Temperature range :
-200~650℃
Voltage :
12-480V
Probe material :
Stainless Steel or Nickel
Style :
K, J, S
Input signal :
pt100,pt1000,Cu50,Cu100
Heating Element :
Nichrome Resistance
Mounting :
Thread/flange/none
Function :
Temperature sensor
Material :
SS304,SS316,SS310
Types of terminal box :
Anti-spray/water-proof
Connection :
Thread
Description

Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor

Description:

1) Explosion-proof thermocouple (resistor) is a type of temperature sensor.There are often various

inflammable and explosive chemical gas and vapor on production site in chemical plants.

2) It will be extremely unsafe if common thermocouples are used, which is quite easy to cause explosion of environmental gas. Therefore, the explosion-prevention thermocouples have to be used under such

circumstances.


Specification:

1, Application: pt100 temperature transmitterRTD,converting RTD(pt100,pt1000, Cu50,Cu100) input signals into a scalable 4 to 20 mA

2, Installation:Directly installed to RTD Form B.

Equipped with special card can realize DIN35 guide rail installation.

3, Probe material: SS304,SS316,SS310

Input
Measured variable Temperature
Measurement accuracy 0.2%
Output
Output signal 4~20mA
Load resistance RL≤(Ue-7.5)/0.021A
Signal on alarm IH = 20.5mA ; IL= 3.8mA
Input Sensor break,output current 22mA
Sensor open-circuit,output current 22mA
Sampling period rating value 0.25S
Protection Reverse polarity protection
Essential parameter
Supply voltage 7.5~45V,d.c.
Temperature drift 0.01% F.S./ °C
Damping time < 5S

Insulation strength

(among Input and output)

 1500V,a.c.;1min

Insulation resistance

(among Input and output)

 ≥100MΩ
Minimum range 50°C
Weight 32g
Rated operating condition - Environment temperature
Storage temperature -50°C~+105°C
Operating temperature -40°C~+85°C
Relative humidity ≤85%
Reference operating conditions

23°C

Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor

Application:

Pipeline inspection,

petrochemical,

industrial equipment,

food machinery,

high-temperature furnace and boiler,

special alloy equipment, metallurgy, hydropower,thermal power, laboratorial platform, glass


Payment Terms and Shipping:

Shipping:

1.About 15 working days after receiving payment(based on actual quantity).

2.Tracking No.will be sent to you after delivery,and we will track the goods for you until you receive it.

Payment:

1.We accept T/T or Western Union, Paypal before production.

2.If buyers have any problems about payment,pls contact us ASAP.
