Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Specifications
Brand Name :
GME
Certification :
ISO/CE/UL/CSA
Place of Origin :
China
MOQ :
50pcs
Price :
USD 1-100 FOB Shanghai/pc
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs/Month
Delivery Time :
7-15 work days
Packaging Details :
Boxes or Wooden Cartons
Lead Wire :
silicon, glassfiber
Shealth Material :
SS304 ,SS321 ,SS316
Color :
Biack and White
Wattage Tolerance :
+5%, -10%
Application :
Oil, Water or Other Liquid etc
Power Source :
Electric
Voltage :
12-480v
Dimension(L*W*H) :
Customizable
Type :
Air Heater, Cartidge heaters
Description

Electric high density heating tube cartridge heater for plastic injection moulds
Description:

1) Electric mini heating element cartridge heater use metal tube as a sheath (including stainless steel, copper tube), which utilize resistance wiring close to the heater sheath for heating transfer ,isolated by a thin layer of compacted MgO insulation.
2) For this Electric mini heating element cartridge heater , customers can also specify lead length and choose from a variety of lead options. Leads can be insulated with fiberglass or PTFE or protected by stainless steel braid or hose.
3) Electric mini heating element cartridge heater also have an option many others lack: the ability to have an internal J or K-type thermocouple located near the tip of the heater


Specification:

Single-Ended tubular heater covering: SUS304/SUS316L/Incoloy 800/Titanium etc.
Insulation: Compacted magnesium Oxide
Heating conductor: NiCr8020
Voltage: 6V to 415v
Power density: Maxi 50W/CM2
Temperature resistance: 800 centi degree
Size tolerance: Less than 0.6mm
Thermocouple: J type, K type etc.

Sheath material
SUS304.321.316,Incoloy800.840,Titanium(available upon request please consult us)
Insulation material
High-purity MgO
Reisistance wire element
Ni-Cr or FeCr
Maximum voltage
480VAC
Wattage density
high/middle/low(5-25w/cm2)
Wattage tolerances
+5 percent, -10 percent
Dimensional Data
Diameter: Min. dia:3mm Length: Customized
Lead options
Crimped- on / Swaged- in
Lead types
Fiberglass 482 °F ( 250 °C )
High temperature fiberglass 842 °F ( 450 °C )
PTFE 392 °F ( 200 °C )
Internal thermocouple
Type J or K available
Lead protecrion options
Stainless steel braid crimped over lead end
Stainless steel flexible hose crimped over lead end
other options
Bent heaters, in no-heat section, up to 90° angle
One inch diameter mounting flange (FS flange)

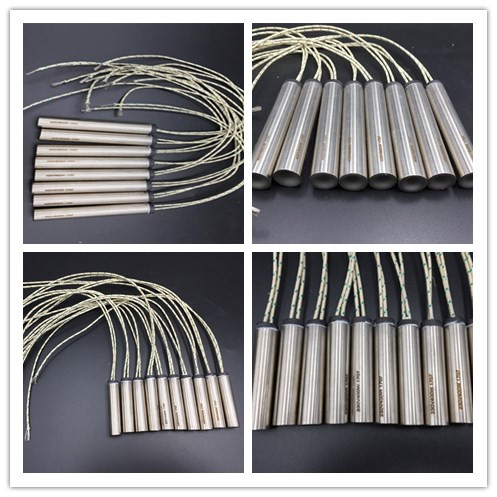

Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
Application:

• Mold die and platen heating
• Seal bars used in packaging equipment
• Plastic Processing
• Injection and Blowing Moulding
• Extruders
• Foundries
• For Fastening of turbine bolts

• Soldering pots


Shipping:
Electric High Density Heating Tube Cartridge Heaters For Plastic Injection Moulds
