3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor
3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor
3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor
3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor
3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor
3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor
Specifications
Certification :
ISO9001
Place of Origin :
China
MOQ :
100Meters
Price :
negotiable
Payment Terms :
T/T or L/C or Paypal
Supply Ability :
300000 Meter/Meters per Month
Delivery Time :
3~20 working days
Packaging Details :
Carton or wooden crate or as per your request
Product Name :
3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable
Application :
Industrial Temperature sensor
Diameter :
2mm-8mm
Accuracy :
Class I
Conductor :
3 4 6 Cores
Sheath material :
SUS321(SS304) , SUS316
Description

3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable

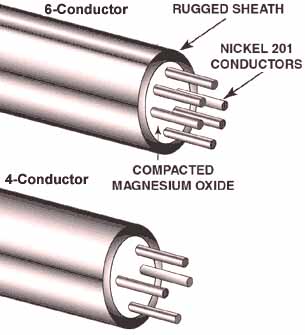

Mineral insulated metal sheathed RTD Cable, has a stainless steel or Inconel outer metal sheath with copper or Nickel signal wire conductors. The conductor lead wires are insulated from each other and the outer sheath by compacted magnesium oxide MgO. Metric and standard US inch diameters are manufactured in a range of OD sizes with 2, 3, 4 or 6 wire internal conductors. The 4 wire design is produced in wide or standard pattern layout in various diameters.

3 4 6 Cores SUS316 Metal Sheath Mineral Insulated RTD Cable For Industrial Temperature Sensor

Sheath Diameter available

2, 2.4, 3.0, 3.2, 4.0, 4.5,4.8, 5.0, 6.0, 6.4, 8.0mm

Conductor material:

Copper or Nickel

Core number

3, 4 or 6

Sheath Material

SUS321(SS304)

SUS316

Sheath Material

Continuous Max. Temperature

Melting Temperature

Application Notes

304

900°C

1400°C

Good resistance to corrosion and oxidation

316

925°C

1370°C

Good corrosion resistance and creep strength at elevated temperatures (Mo). Resists tendency to pit in phosphoric and aetic acids. Withstands sulphuric acid compounds.

Conductor wire type

Symbol

Wire material

Recommended max. temperature

(CU)

Copper

400°C

(NI)

Nickle

600°C

(AQ)

Constantan

650°C

Feature:

1. Available in Copper or Nickel Conductors

2. 3, 4 or 6 cores

3. 99.4% high purity Mgo insulation

4. Sheath material: SUS321(SS304),SUS316

5. Wider spacing available

6. Cable diameters currently available (in mm): 2, 2.4, 3.0, 3.2, 4.0, 4.5,4.8, 5.0, 6.0, 6.4, 8.0mm

Application:

MI RTD cable is used in combination with an RTD. The Copper, Nickel or Constantan wires ensure a stable transmission of the signal and our two different designs (wide-spaced and regular spaced) guarantee efficient mounting for either method.
