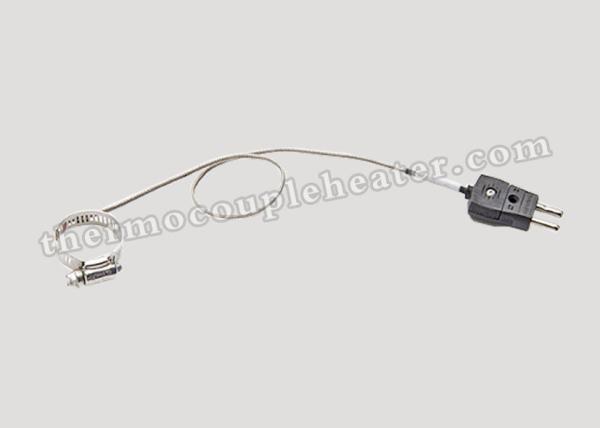

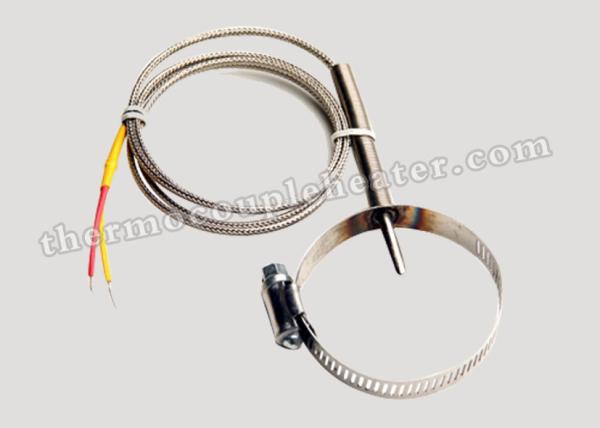

SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry
Specifications
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,PAYPAL
Supply Ability :
100000 pcs per Month
Delivery Time :
7~20 working days
Packaging Details :
Carton or as per your request
Product Name :
SS Hoop Pipe Clamp Thermocouple In Type K For Petroleum And Chemical Industry
Application :
temperature sensor for Plastic industry
Calibration :
Type K
Accuracy :
Class I
Max.temperature :
900F or 500C
Probe Material :
304SS ,316SS
Description

SS Hoop Pipe Clamp Thermocouple In Type K For Petroleum And Chemical Industry

Product Description:


Stainless Steel Pipe Clamp thermocouples are designed to monitor pipe temperatures without drilling or tapping, ideal for measuring pipe temperatures. Also use to measure tubular heater sheath temperature. Stainless steel braided shield protects the element, which senses the temperature on the surface of the clamp.

SS Hoop Pipe Clamp Thermocouple Type K For Petroleum Chemical Industry

Specifications:

Diameter Range

1 1/16”-2”

1 13/16”-2 3/4”

2 9/16”-3 1/2”

3”-5”

5”-7”

Calibration

Type K ,Type J,

Accuracy

Class I

Junction

Ungrounded , Grounded

Wire Description

20 Gage Stranded stainless steel braid

Flexible armor cable

20Gage Stranded fiberglass cable

Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and Spade lugs,

Standard Male Plug,

Standard Female Jack,

Mini Male Plug,

Mini Female Jack,

Accessories

None,

Bx connector,

Cable clamp

Feature:


1) Ideal for temperature measurement of the pipe with gases or liquids;
2) Anti-vibration;
3) Easy to install ;
4) Temperature range : 0 - 500 C

Application:


The hoop pipe clamp style thermocouples are used in industry for measuring the temperature of pipe with gases, liquids for Petroleum and Chemical industry. The probe terminal are usually placed on the pipe by a shrinkable clamp ring. This thermocouple is easy to install and replace with its simple structure, also fast responding ,high accuracy and stable performance.
