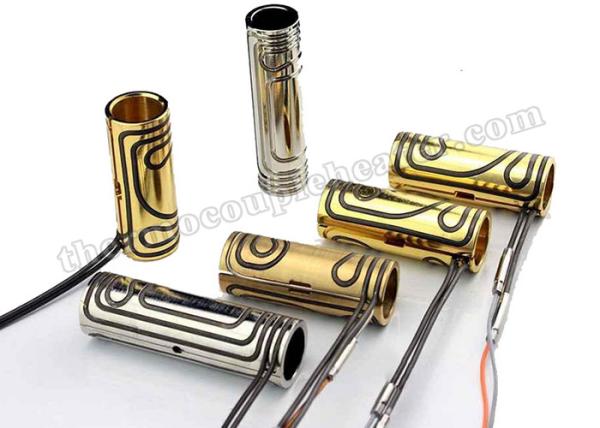

Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
Specifications
Brand Name :
GME
Model Number :
Coil Heater
Certification :
CE & ISO
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiation
Payment Terms :
D/P, T/T, L/C, Paypal, , Western Union
Supply Ability :
11,000pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Exported Case Packing
Product Name :
Coil Heaters with Thermocouple
Power Source :
Electric
Power(W) :
200-3000W
Watt Density :
6.5 W / CM 2
Insulated Material :
Comressed MgO
Moistureproof :
IP 65
Lead Wire Length :
1000 mm or customised
Material :
Stainless Steel 304 316
Description

Hot Runner Brass Tube Electric Coil Heaters with Thermocouple


1. Coil Heaters with Thermocouple Brief Introduction


Wuhan Global Metal hot runner heaters use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


2. Coil Heaters with Thermocouple Characteristics

  • Standard sizes available with various cross section
  • Various Watt Density options available.
  • Robust Design with Choice of Terminal Exits
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • CE Certified
  • Available with built in Thermocouple


3. Coil Heaters with Thermocouple Parameter.

  • Standard Configuration
  • Material :304
  • Unheated length(L1):45mm
  • Connector(cold side)(D1xU): Ф3.5x40mm
  • Power lines,grounding wire length(L):1000mm
  • Surface treatment:sandblasting;

Spring coil heater (H series)

3.2x1.8

Φ1.8
Φ2.0

Φ2.5

4.2x2.2

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance 201W-2000W

+5%-10%

Out jacket length

30mm~280mm

inside jacket diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

0.05mm~0.10mm

Tolerance cross section

+/-0.10mm

+/-0.15mm

Thermocouple

K,J,E

None

K,J,E

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

600V

800V

4. Copper Heaters Coil Application


Hot Runner Nozzles & Bushings.
Hot runner Injection moulds
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds.
Hot Runner Manifolds.

5. Packing Information

Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters

6. Transportation.

Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
