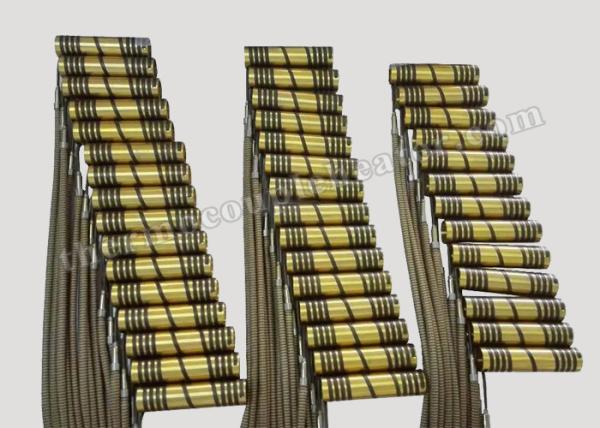

Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
Specifications
Brand Name :
GME
Model Number :
Coil Heater
Certification :
CE & ISO
Place of Origin :
China
MOQ :
20 pcs
Price :
Negotiation
Payment Terms :
Western Union, D/P, L/C, T/T, Paypal
Supply Ability :
11,000pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Exported Case Packing
Product Name :
Electric Heaters
Application :
Injection Mould
Port :
Shenzhen or Shanghai
Watt Density :
6.5W/CM2
Max.Tempreture :
650℃
Material :
Stainless Steel 304 316
Power(W) :
200-3000W
Warranty :
1 Year
Description

Injection Mould Brass Tube Electric Heaters for Hot Runner System


1. Electric Heaters Brief Introduction


Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


2. Electric Heaters Characteristics

  • Standard sizes available with various cross section
  • Various Watt Density options available.
  • Robust Design with Choice of Terminal Exits
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • CE Certified
  • Available with built in Thermocouple


3. Electric Heaters Parameter.

  • Standard Configuration
  • Material :304
  • Unheated length(L1):45mm
  • Connector(cold side)(DxU):
  • Square cross-section:Ф7.6x26mm
  • Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
  • Power lines,grounding wire length(L):1000mm
  • Jacket:Silicone fiberglass sheathing establishment,black and others
  • Thermocouple:J tpye
  • Compensating lead wire length(L):1000mm
  • Surface treatment:sandblasting,black, polish

Spring coil heater (H series)

3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7

Φ3.0

Φ4.0

Φ5.0

3.5x3.5
4.0x4.0

5.0x5.0

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance 201W-2000W

+5%-10%

Out jacket length

30mm~280mm

Diameter of the inner sleeve/wrapped diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d 20mm~30mm

Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d ≥30mm

Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm

Tolerance cross section

+/-0.15mm

+/-0.20mm

Thermocouple

K,J,E

None

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

800V

1000V

4. Electric Heaters Application

  • Hot Runner Nozzles & Bushings.
  • Hot runner Injection moulds
  • Injection & Blow Moulding Machine Nozzles.
  • PET prefrom & Thin wall container Moulds.
  • Hot runner Manifolds.

5. Packing Information

Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding

6. Transportation

Non - Corrosive Brass Electric Tube Heaters For Hot Runner System Injection Molding
