Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
Specifications
Brand Name :
GME
Model Number :
RSiC Thermocouple Protection Tube
Certification :
CE & ISO
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P, L/C, Paypal
Supply Ability :
25,000pcs per month
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Exported Case Packing
Product Name :
RSiC Thermocouple Protection Tube
Temperature range range :
1200C,1300C,1450,1550 C
Materials :
Recrystallized Silicon Carbide
Theory :
Temperature Sensor
Usage :
Industrial, thermocouple Accessories
Material :
Grey
Function :
:antioxidation,anti-corrosion,and good thermal conduction
Application :
Industrial Ceramic
Description

Alumina Thermocouple Ceramic Insulator


1. RSiC Thermocouple Protection Tube Brief Introduction


Recrystallized Silicon Carbide RSiC Thermocouple Protection Tubes have the excellent properties of high strength, wide working temperature range, oxidization resistance and corrosion resistance. It can be widely used in the thermometric system of chemical, metallurgy and ceramic industrial kiln furnace.

2. RSiC Thermocouple Protection Tube Characteristics

  • High temperature tolerance
  • Corrosion resistance
  • High bending strength
  • Oxidation resistance

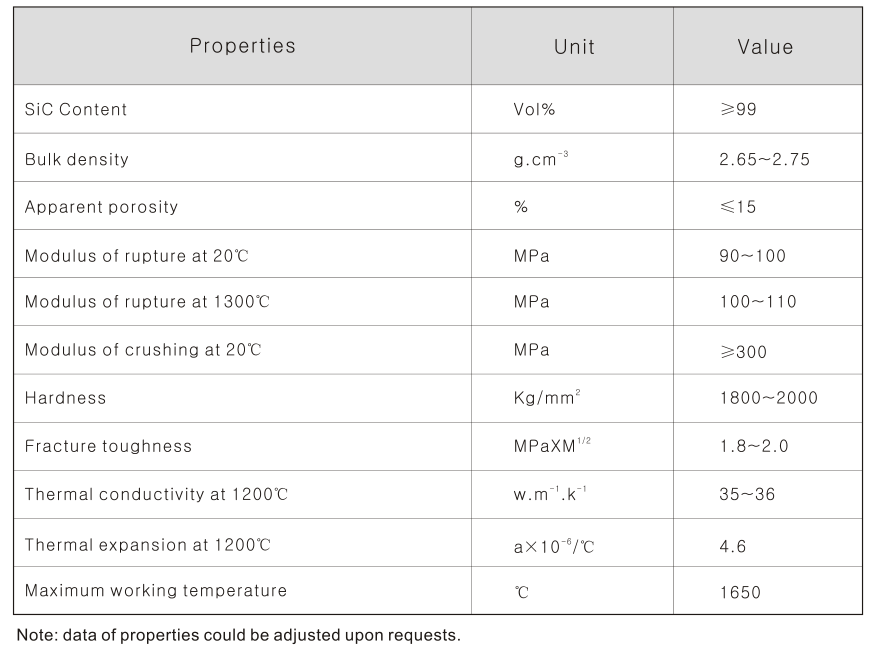

3. RSiC Thermocouple Protection Tube Parameter.

Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion

Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion

Properties Unit RSiC
Contents: RSiC Vol% > 99
NSiC 0
Bulk Density g/cm 3 2.65-2.75
Apparent Porosity % 15
Modulus of rupture at 20°C MPa 90-100
Modulus of rupture at 1200°C MPa 110
Modulus of rupture at 1350°C MPa 120
Modulus of Crushing at 20°C MPa 300
Thermal conduction at 1200°C w. m-1. k-1 36.6
Thermal Expansion at 1200°C a×10-6/°C 4.69
Thermal Shock Resistance at 1200°C Good
Max. Working Temperature °C 1620(oxid)


4. Thermocouple Ceramic Insulator Application

  • Furnace tube for resistance furnaces, heat treatment furnaces
  • Chemical analysis for steel and iron
  • Various insulationg parts for high temperature resistance and etching resistance
  • Temperature measuring meters
  • Protection and insulation for thermocouples and thermometers

5. Transportation

Recrystallized RSiC Thermocouple Silicon Carbide Tubes Anti - Corrosion
