High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
Specifications
Brand Name :
GME
Place of Origin :
China
MOQ :
5000 pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,500,000 pcs per month
Delivery Time :
2-3 weeks
Packaging Details :
Pallet
Usage :
Protection of thermocouple probe
Material :
Alumina
Color :
Ivory / Pink
Size :
Customized
Max.Using Temperature :
1800°C
Description

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube

Description:

Alumina ceramic is a kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.

Feature:

A variety of specifications available

Satisfy various technical request

Lower medium spoilage

Good insulation performance and high temperature resistance

Stiffness texture

Used in all electric products, electric heating products and wear resistant machinery parts

Technical data:

Material 85 Al2o3 95 Al2o3 99.7 Al2o3
Al2o3 0.85 0.94 0.996
Fe2o3 ≤ 1.0 ≤ 0.5 ≤ 0.3
Density: g / cm3 3.4 3.6 3.85
Vickers Hardness ≥ 8.6 9 9
Water Absorption:% ≤ 0.2 ≤ 0.085 ≤ 0.01
Refractoriness:°C 1200 °C 1600 °C 1800°C
Flexural Strength:Mpa 180 240 280

Wear Rate( at room temperature,

erosion, 100 grinding)%

 ≤ 3 ≤ 1 ≤ 0.5

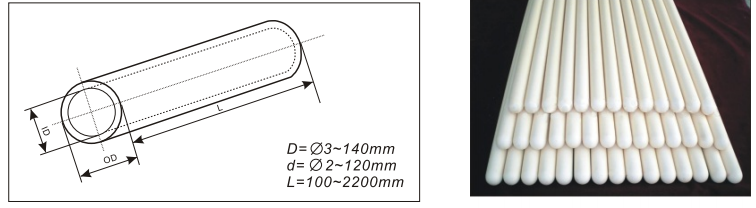

One end closed:

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube

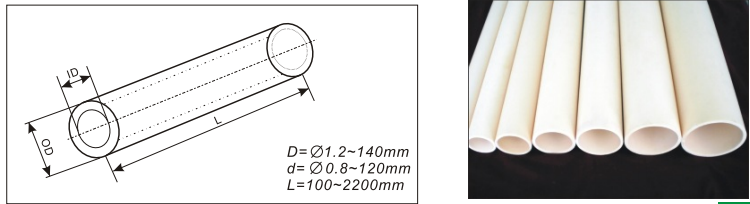

Both ends open:

High Temperature Resistant Alumina Al2O3 Ceramic Thermocouple Protection Tube
