Specifications
Brand Name :
GME
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
7-15 Working Days
Packaging Details :
Exported Case Packing
Voltage :
12-480V, Customized
Power Density :
5-60W/cm2, Customized
Dimension :
Section * Length, Customized
Connection :
Internal or external
Sheath material :
Stainless Steel
Cap Seal :
Ceramic Cap, Cement, Epoxy or RTV Seal
Application :
Industry Heating Process, mould, 3D print, Oil, Water or Other Liquid etc
Description
Square Cartridge Heaters Customized Special Shape

Description:

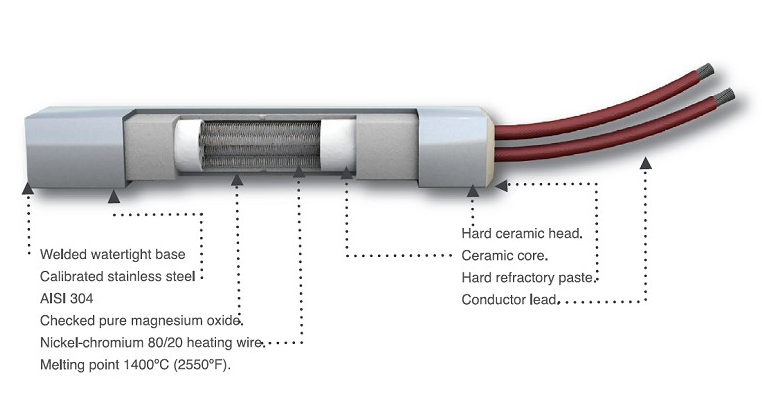

Cartridge heater is a kind of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens .

Square Cartridge Heaters In Customized Special Shape

Feature

For those applications where a drilled hole is not practical, GME offers square cartridge heaters. Unlike square cartridge heaters from other manufacturers, our square cartridge heaters are swaged, allowing them to be used in high temperature and high watt density applications.

Square heaters are ideal for milled slots in long platens where drilling a long hole would be too difficult. Square heaters are also much easier to remove from a slot after extended high temperature usage than removing a round heater from a drilled hole.

Technical Details

1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
4 Max working temperature 900℃
5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
6 OD range: 3mm-32mm
7 The range of the Total Length: 25mm----2500mm
8 Maximum power density: 100w/cm²
9 Unheated zone: 10mm at lead end and about 5mm at bottom
10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside
