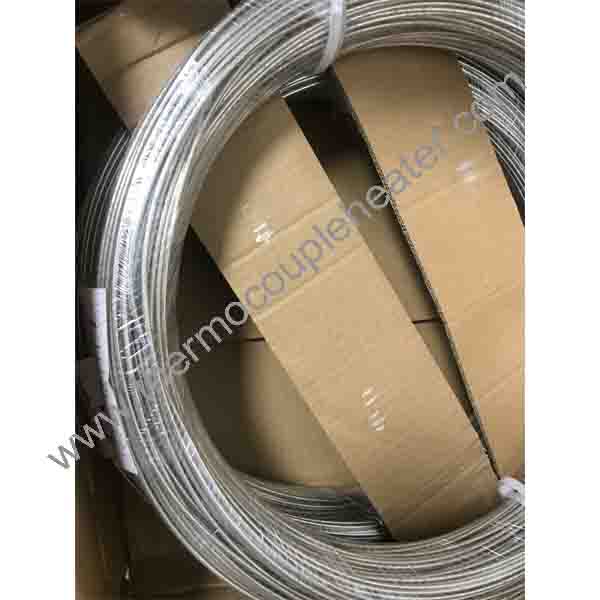

Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Chromel / Alumel Thermocouple Bare Wire Type K
Specifications
Brand Name :
GME
Place of Origin :
China
MOQ :
100meters
Price :
USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100meter
Delivery Time :
7-10days
Packaging Details :
carton
Model Number: :
K ,J, N, E ,T ,S ,B, R
Application: :
connecting with thermocouple and instrument machine
Conductor Material :
NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Kon
Insulation Material :
99.6% high purity MgO
Sheath material :
SS347,800,800H,825,INCONEL601,INCONEL625,GH4145
Dia(mm) :
from 0.25mm to 12.7mm
Description

Chromel / Alumel Thermocouple Bare Wire (Type K)

Description:

NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.The main chemical composition of positive leg NiCr (KP) are Ni≈90% and Cr≈10%; negative leg NiSi (KN) are Ni≈97% and Cr≈3%. The operating temperature range is -200~1300°C(for short term) and 0~1100°C( for long term) .

Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following case:

(1) Alternatively oxidizing and reducing atmosphere,

(2) Atmosphere with sulphur gases,

(3) Long time in vacuum,

Type K Temperature Range:

(1)Thermocouple grade wire, -200~1300℃(for short term) and 0~1100℃( for long term)

(2)Extension wire, 32 to 392F (0 to 200C)

Working temperature:

Diameter/mm Long time Working Short period Working
temperature/°C temperature/°C
0.3 700 800
0.5 800 900
0.8,1.0 900 1000
1.2,1.6 1000 1100
2.0,2.5 1100 1200
3.2 1200 1300

Chromel / Alumel Thermocouple Bare Wire Type K
