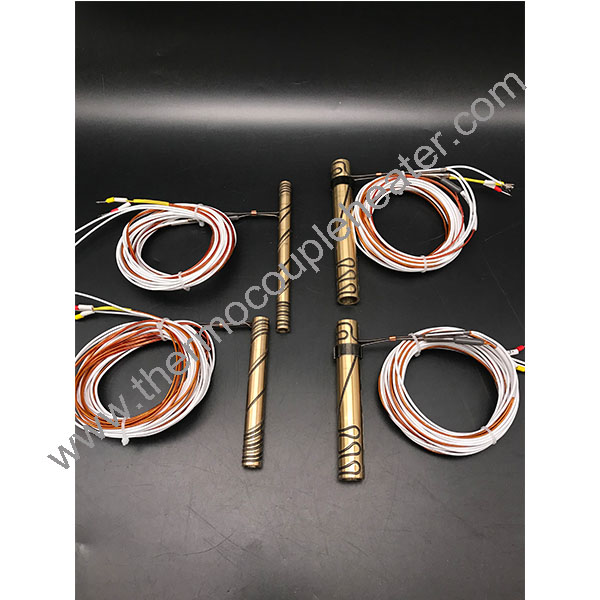

High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
High Temperature Brass / Copper Nozzle Hot Runner Coil Heaters With Or Without Thermocouple
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
110-240V / 50-60Hz
Warranty :
one year
power :
195W-690W
Style :
straight or coil
Heating wire material: :
Cr20Ni80
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass or stainless steel
Color :
Copper
Application :
Widely used
Height :
10mm~200mm
Description

High Temperature Brass/Copper Nozzle hot runner coil Heaters with or without Thermocouple

Description:

Nozzle type hot runner heater ,the spring heating ring is embedded in brass, to make full use of high-efficiency heat transfer performance of brass. excellent performance, fast heating effect and long service life .Moreover, it solves many technical problems of hot runner such as salivation and wire drawing caused by nozzle temperature.

Specification:

1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available

Inner diameter : 6.5mm

Outer diameter: 9.5mm

Coil heater is made of SS304 sheath ,nickel chrome resistance wire, and high insulation material . It has different models , like
round section ,squre section and rectangle section . Thermocouple options are type J, type k and type E . Spring coil heater is
widely used in hot runner plastic mold , blow machine , extrude machine and nozzle.
material copper
size inside diameter 8-60mm,length 25-200mm
thermocouple J type (Standard) or K type
min wall thickness 2mm-3mm
Inner diameter tolerance ±0.05mm
Sleeve length tolerance ±0.05mm
Round heating wire 1.6mm,1.8mm.2.0mm.2.2mm
Square heating wire 2.2*4.2mm,3*3mm,3.5*3.5mm
The minimum spacing between ID and OD is 7mm.

Application:

1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
