Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12-480V
Sheath material :
Stainless Steel or Nickel
Style :
K, J,
Lead wire :
copper, , fiberglass silicon
Insulation Material :
MgO
Heating Element :
Nichrome Resistance
Screw Threads :
Available
Flange Washer :
Available
Tube Diameter :
2mm - 30mm
Description

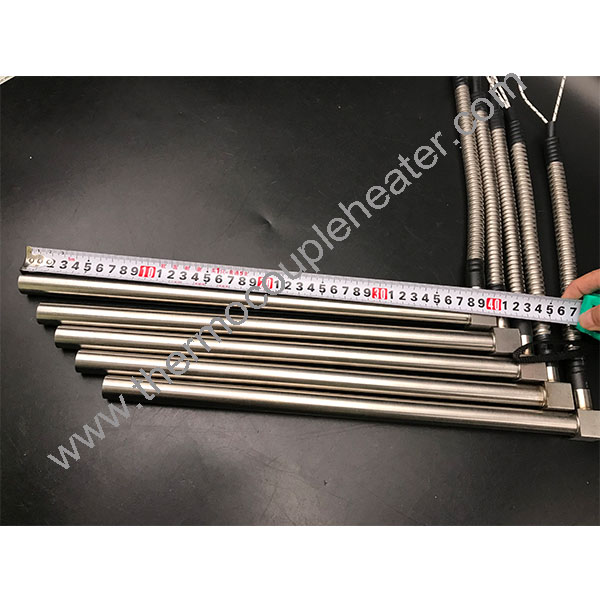

High Quality Stainless Steel Right Angle Heating Element Cartridge Heater type L


Description:

L-shaped cartridge heater is a seamless metal tube (carbon steel tube, titanium tube, stainless steel tube, copper tube) placed in the heating wire, and the gap is tightly filled with crystal MgO which has good thermal conductivity and insulation. The two ends are connected to the power supply through two lead rods, and the gap is filled with MgO then shrinking

Features:

1. According to the environment in which the equipment is used, select pipes with excellent performance to meet the special requirements of corrosion resistance, heat resistance, long dry burning life, rapid cooling and heating.

2. The surface of L-shaped electric heating pipe adopts special process and seamless stainless steel to prevent dry burning explosion.
3. Excellent electrical performance, improve equipment safety.


Specification:

(1.) Tube diameter: Φ3mm-Φ30mm

(2.) Tube Material:SS304;SS316,SS321,NICOLOY800 etc

(3.) Insulation Material:High-purity Mgo

(4.) Reisistance wire element:Ni-Cr or FeCr

(5.) Lead Connection Option: Crimped or Swaged leads

(6.) Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)

Name
Right Angle Cartridge Heater
Wattage Tolerance
+5%, -10%
Resistance tolerance
380V,240V, 220V,110V,36V,24V or 12V
Max operating temp
650ºC
Length tolerance
± 1mm
Camber tolerance
1.7 mm per meter (0.020 inches per foot)
Diameter tolerance
The diameter of each end may be different +0.05mm -0.1mm (+.002" -.004")
Standard Unheated Area
5-10mm
Internal thermocouple
type J or K
Thermocouple Location
Disc End, Sheath, Center of Heater
Insulation resistance (cold)
≥ 500 MΩ
Maximum leakage current (cold)
≤ 0.5 mA
Diameter
from 3.0mm to 30mm

High Quality Stainless Steel Right Angle Heating Element Cartridge Heater Type L


Application:

l Plastic Processing machinery.

l Water and Oil Heating Appliances.

l Packaging machineries

l Vending Machines.

l Dies and Tools.

l Heating Chemical Solutions.

l Ovens & Dryers

l Kitchen equipments

l Medical equipments
