Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Temperature range :
-200~650℃
Voltage :
12-480V
Probe material :
Stainless Steel or Nickel
Pairs quantity of element :
Simplex/duplex
Heating Element :
Nichrome Resistance
Mounting :
Thread/flange/none
Function :
Temperature sensor
Types of terminal box :
Anti-spray/water-proof
Connection :
Thread
Description

Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable for Industry


Description:

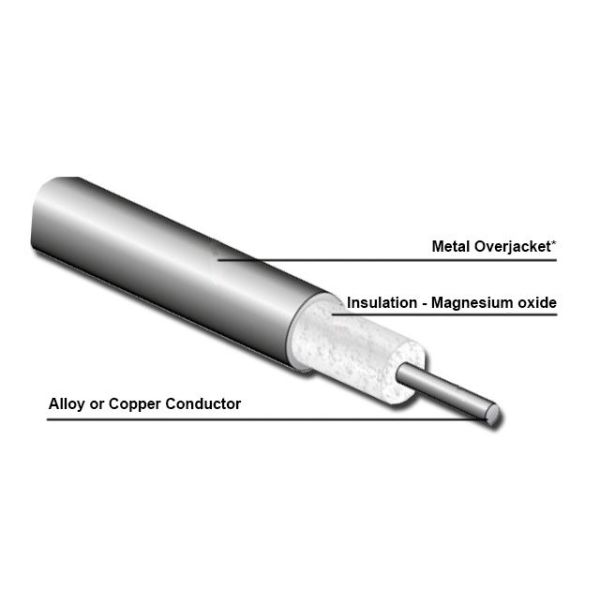

K Type Thermocouple Mineral Insulated Electrical Cables (MI Cable)

Name: Sheath Wire Type K
Type: K, N, E, J, T
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe Konstantan, Cu Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)

Specification:

1) S/B/R type pt-rh thermocouple
2).wire diameter: 0.3 mm, 0.4 mm, 0.5 mm
3).length:can be customized as for customer's requirement
4).measuring range:0-1600 C
5).fixed device:screw thread/flange
6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector type

1).material: PtRh10-Pt, PtRh30-PrRh6, PtRh13-Pt
2).use temperature:0-1300,0-1600
3).max temperature: 1800°C
4).experiment temperature: 0-1600°C
5).thermal response Time:≤120 s
Conductor
material
Wire
Calibration
Accuracy
Class
Class
Accuracy
Temperature range(℃)
Accuracy
Temperature range(℃)
Ni Cr-Ni Si
K
1.5
or
0.4%t
-40-1000
2.5
or
0.75%t
-40-1000
Ni Cr Si-Ni Si
E
-40-1100
-40-1200
NiCr-Konstantan
N
-40-800
-40-800
Fe-Konstantan
J
-40-750
-40-750
Cu-Konstantan
T
1 or 0.4%t
-40-350
1.5 or 0.75%t
-40-350
Pt Rh 10-Pt
S
1 or 1+t-1100x0.003
0-1600
1.5
or
0.25%t
0-1600
PtRh 13-Pt
R
0-1600
Pt Rh30-PtRh 6
B
600-1700

Type K/N/T/J/N/B/S/R Thermocouple Mineral Insulated Cable Mi Cable For Industry
