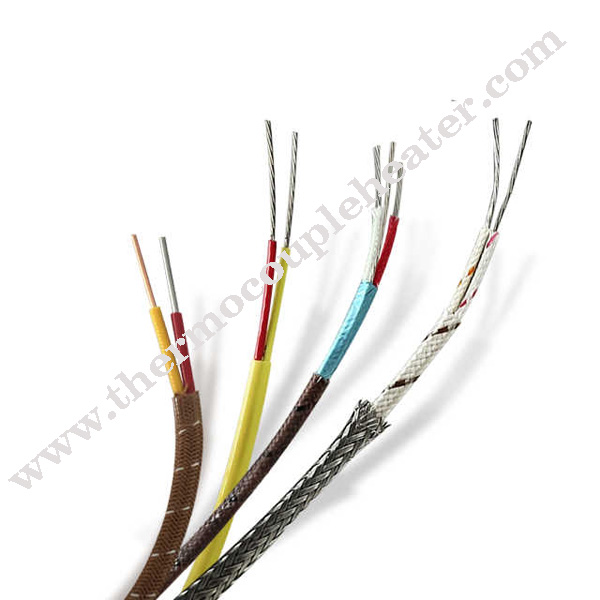

Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires
Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires
Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires
Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires
Specifications
Brand Name :
GME
Model Number :
type K, Type J
Certification :
CE
Place of Origin :
China
MOQ :
500meters
Price :
USD$0.5-1.5/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000meters
Delivery Time :
10 days
Packaging Details :
carton
type :
insulated
conductor material :
Ni Si Cr
insulation material :
Silicone, fiberglass PFA, FEP, PTFE, PVC
sheath material :
Fluoroplastic
treatment :
hydrogen annealing
Size :
as customized size
Description

Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires

Description:

1.Style:Compensation Wire
2.Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Products Description:


Thermocouple Variety and Index

Variety
Type
Measurement Range(°C)

NiCr-NiSi
K
-200-1300

NiCr-CuNi
E
-200-900

Fe-CuNi
J
-40-750

Cu-CuNi
T
-200-350

NiCrSi-NiSi
N
-200-1300

NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0

Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25
Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron(+) vs.
Constantan(-)		 J White/Red Brown 0°C to +285°C
285°C to +750°C		 ±2.2°C
± .75%		 ±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)		 K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C		 ± 2%
±2.2°C
±2.2°C
± .75%		 ±1.1°C
± .4%
Copper(+) vs.
Constantan(-)		 T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C		 ± 1.5%
±1°C
± .75%		 ± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)		 E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C		 ± 1%
±1.7°C
±1.7°C
± .5%		 ±1°C
±1°C
± .4%
± .4%

Thermocouple RTD PT100 Extension Wire Cable Customized 2 4 6 9 12 Wires
