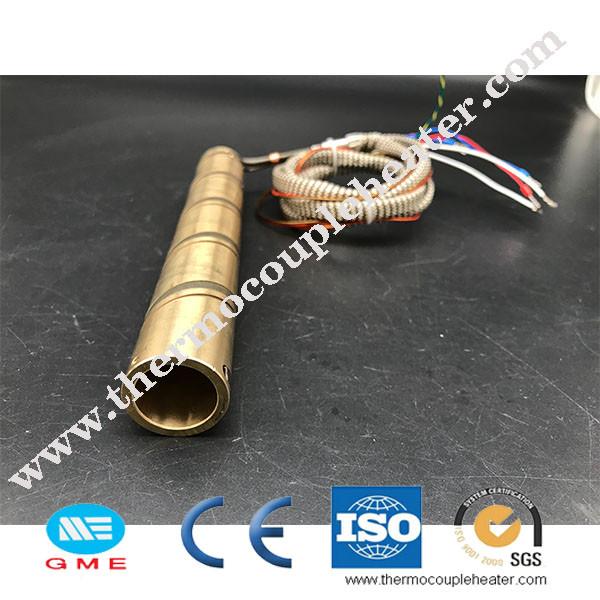

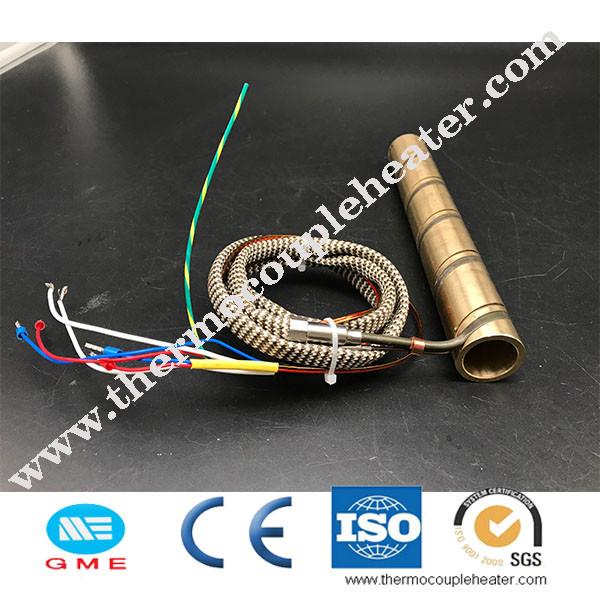

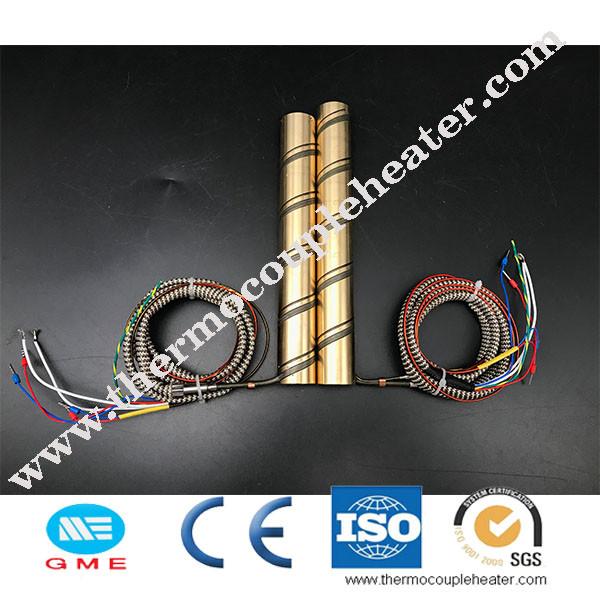

Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
120v 220v 240v 380v, 220V
Sheath material :
Stainless Steel or Nickel
Cross Section :
3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4,4.20 x 2.20,4.20 x 2.50
Style :
straight or coil
Lead wire :
, fiberglass , metal mesh
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass and stainless steel
Application :
manifolds, hot runner/ injection
color :
silver or fully black
Description

Pressed In Brass Coil Heater With Thermocouple for hot runner system

Description:

The pressed in brass coil heaters (hot runner brass nozzle heaters) we provide deliver the benefits of cast in brass coil heaters and eliminate known problems associated with the casting process. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high pure magnesium oxide, high temperature resistance wire, and world-class manufacturing technology. The basic construction of these heaters consists of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. With or without built in thermocouples. Widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines.

Specification:

1. Standard sizes available with various cross section
2. Various Watt Density option3.
3. Precision fit on Hot Runner Nozzles
4. Highly Non-corrosive
5. Choice of Terminal Exits
6. Advanced Thermal Engineering
7. Available with built in Thermocouple
8. CE approved

  • Thermocouple: Integrated type J or type K
  • Voltage: 220v, 230v, 240v
  • ID: Φ10mm-Φ42mm
  • Unheated length:45mm
  • Max power density: 9W/cm²
  • Maximum Total Straight Length: 3000mm (118.11”)
  • Length Tolerance: Heated +/-1%; Unheated +/- 2.5%
  • Material: 304, 321, 316
  • Maximum working temperature: 650℃

Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple

Application:

  • Hot runner nozzles & bushings
  • Injection & blow moulding machine nozzles
  • Hot runner manifolds
