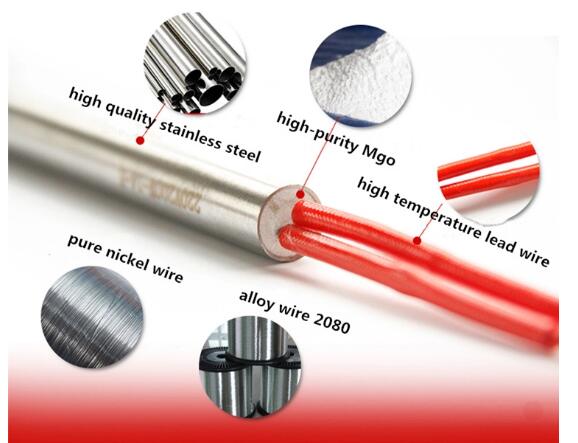

MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting
MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting
MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting
MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting
MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting
MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12-480V
Sheath material :
Stainless Steel or Nickel
Style :
K, J,
Lead wire :
copper, , fiberglass silicon
Insulation Material :
MgO
Heating Element :
Nichrome Resistance
Screw Threads :
Available
Flange Washer :
Available
Tube Diameter :
2mm - 30mm
Description

Customized Immersion cartridge heater with screw threaded fitting


Description:

Cartridge Heater is a tube-shapedindustrial heating element (electrical resistance), which is widely used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application.

There are various kinds of enamel tubular heater, U shape, W shape, double end, etc. Our enamel tubular heaters are customized according to your specifications.


Specification:

(1.) Tube diameter: Φ3mm-Φ30mm

(2.) Tube Material:SS304;SS316,SS321,NICOLOY800 etc

(3.) Insulation Material:High-purity Mgo

(4.) Reisistance wire element:Ni-Cr or FeCr

(5.) Lead Connection Option: Crimped or Swaged leads

(6.) Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)

Heat intensity Not exceeding 30Wcm2 (advisable)
Power Depends on the dimension
Escape of current (when cold) <=0.1mA a 242 v.
Insulation (when cold) 5 Min Ohmios 500 Watts minimum
Dielectric strength 1500v. 1/seg
Working temperature 750ºG max.
Tolerance of length +/-1.5%
Tolerance of diameter -0.01 a -0.06 m/m
Tolerance of cut of connexion +/-15 mlm
Power tolerance (w) 5 % - 10 %
Cold areas Depends on length and diameter 5-25mm

MgO Insulation Immersion Cartridge Heater With Screw Threaded Fitting


Application:

l Plastic Processing machinery.

l Water and Oil Heating Appliances.

l Packaging machineries

l Vending Machines.

l Dies and Tools.

l Heating Chemical Solutions.

l Ovens & Dryers

l Kitchen equipments

l Medical equipments

Packaging: tubular heater in plywood case outside if needed.

Shipment:

1. small quantity by DHL,FEDEX

2. Bulk goods by Sea Freight

3. Arranged to your order
