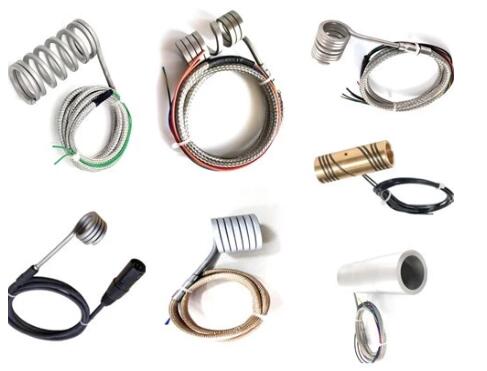

MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
120v 220v 240v 380v, 220V
Sheath material :
Stainless Steel or Nickel
Cross Section :
3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4,4.20 x 2.20,4.20 x 2.50
Style :
straight or coil
Lead wire :
, fiberglass , metal mesh
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass and stainless steel
Application :
manifolds, hot runner/ injection
color :
silver or fully black
Description

Brass Coil Heaters Brass Coil Heater MICC Thermocouple Brass Hot Runner Coil Heaters

Description:

Hot runner Coil Heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder. It has round, squre and flat sections. The surface treatment can be polishing and sand blasting.And it can be connected with K, J, or E type temperature control thermocouples. Spring coil heater is widely used in heating engineering, mold, plastic industry, extruder and hot nozzle, etc.

Specification:

1. Maximum Sheath Temperature: 700°C

2. Inner Diameter: 8-38mm( + 0.05mm)

3.Coil style Length: 40-200mm (+ 0.5mm)
4.Staright style length:200-3000mm (+ 0.5mm)
5.Cross-section:
Round Dia.3mm;3.3mm;3.5mm
Square: 3x3mm;3.3x3.3mm,4x4mm,
Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
6. Available Sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar


Product Name
Copper/Brass Coil Heater Nozzle Band Heater
Rated voltage
12V-480V customized
Sheath Material
Chrome Nickel Steel
Cross Section
1.5mm , 1.8mm, 1.3x2.3 mm
Resistance Wire
NiCr2080
Terminal Type
Screw, Plug, Ceramic Block, Lead Wire and so on
Built-in thermocouple
With or without J/K thermocouple
Insulation Resistance
10 MW @ 500V DC
Power tolerance
± 10% (Tighter Tolerance available)
Current Leakage
< 0.5 mA @ 253 V AC
Unheated Length
Minimum 25 mm plus adapter connection
Minimum Bending diameter
6mm

MICC Thermocouple Brass Hot Runner Coil Heater With Nickel Sheath

Application:

* Injection moulding machine nozzle

* Hot Runner Nozzles & Bushings
* Packaging machinery
* Hot runner Injection moulds
* Injection & Blow Moulding Machine Nozzles
* PET preform & Thin wall container Moulds
* Hot runner Manifolds
