Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12V/24V/110V/220V/230V...
Sheath material :
Stainless Steel or Nickel
Minimum ID :
25mm
Style :
straight or coil
Lead wire :
copper, , fiberglass silicon
Thermocouple type :
J or K type
Terminal :
Axial, Radial & Tangential
Power :
100W, 150W,180W,
Description

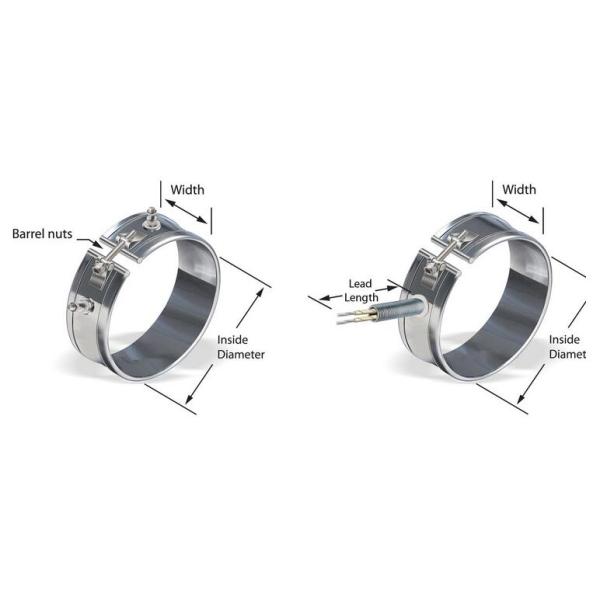

12v Stainless Steel infrared energy saving extruder Mica band heater with k type thermocouple

Description:

1) Mica Band Heaters are Made of mica insulation, nickel chrome heating wire and stainless steel sheath,
Mica band heaters are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry.
We can produce vatious shapes to accomodate different applications and industries.


2) All Customer Design Requirements such as European plugs, terminal boxes, wire leads, post terminalsand tapped thermocouple brackets are available from our factory to service Asian, European, American Market , etc.

Specification:

Band Voltage
120V 220V 230V 240V 480V etc (under customer request)
Max working temperature
550 degree celsius
Resistance Wire Type
NiCr 80/20
Sheath Material
304 stainless steel
Insulation Material
Mica
Mini Diamter
25mm
Mini Width
25mm
Band Construction
One-piece or Two-Piece
Gap Locking Mechanism Type
Flange, Barrel Nuts or None
Lead Exit Position
Standard or Customized
Termination Style
Standard lead, Screw terminal; 2-Pin Euro Plug or 3-Pin Euro Plug
Holes availability
Customer- Design
Notches availability
Customer- Design

Infrared Energy Saving Cast Heater Extruder Mica Band Heater With K Type Thermocouple

Packing and Shipping:

1. Packing
a) Package : bubble bags and cartons or wooden case ; or under customer request
b) Lead time : 3-7 days for samples; 5-25 days for batch goods.

2. Shipping
a). Fedex/DHL/UPS/TNT express Door to Door for weight below 100KG
b). By Air or by Sea for batch goods;
c). Customers specifying freight forwarders or negotiable shipping methods
