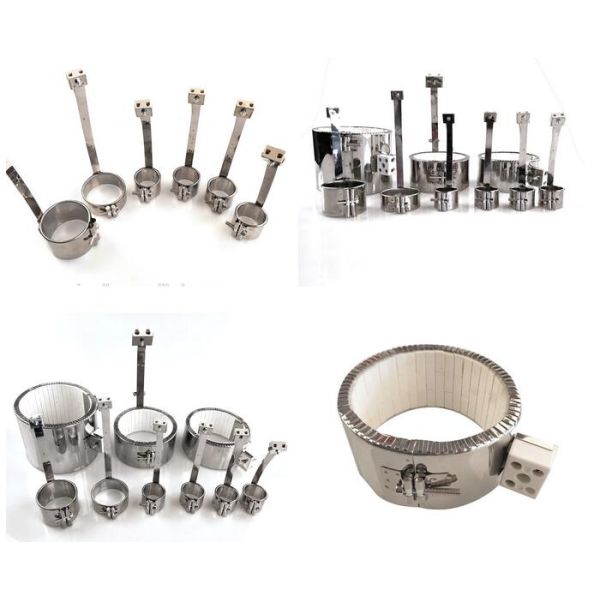

Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
220v, 110v 10v 220v
Sheath material :
Stainless Steel or Nickel
Minimum ID :
25mm
Name :
Ceramic Band Heater for Injection Molding Machine
Lead wire :
copper, , fiberglass silicon
Shape :
Cylinder
Power :
0-90000KW
Heating elements :
Nickel Chrome Wire
Description

stainless steel mica ring band heater for plastic extrude machine

Description:

1) This stainless steel mica band heater is used the high temperature insulation materials such as mica, ceramic, MgO, glass fiber, etc., and N-80 nickel alloy/high temperature iron-based alloy as heating material, and the shell is made of superconducting low carbon galvanized sheet or SUS304 stainless steel as a protective thermal material.

2) It is widely used in many industries such as mold heating, auto parts, plastic machinery, food machinery, medical equipment, HVAC engineering, laboratory equipment, and so on .

Specification:

1. The sheath of the heater is rust resistance.
2. High class Nickel Chrome ribbon is used.
3. Maximum power: 3 w/cm²
4. Operating temperature up maximum of 250 degree centigrade
5. Axial, Radial & Tangential terminals are available
6. Thermocouple holes can be provided as per client's requirements

Product name
Stainless steel mica ring band heater for plastic extruder machine
Power
1-10000KW customized
Voltage
12V/24V/110V/220V/380V customized
Material
SUS304/Mica/ceramic/MgO/glass fiber
Heating element
Nickel alloy /high temperature iron alloy
Usage temperature
350℃-650℃
Shape
Plate/ frame/ heterotype /Square/Round
Stucture type
Single layer/double layer
terminal type/plug type/ inner wire type

Stainless Steel Mica Ring Band Heater Cast Heater For Plastic Extrude Machine

Application:

* For heating the nozzles of Injection Molding

* Machines
* Extruders
* Blown film dies
* Nozzles of Injection molding machines
* Other cylinder heating applications
* All Plastic & Rubber Processing Machinery
