Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed
Specifications
Brand Name :
GME
Model Number :
DIN A
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 pieces
Price :
USD 2.0-10 FOB Shanghai/pcs
Payment Terms :
T/T, Western Union, L/C,PayPal
Supply Ability :
10000pcs per month
Delivery Time :
7-15 Working Days
Packaging Details :
Export Carton Package or as Customer Request
Product Name :
Temperature Sensor Connection head
Application :
Industrial Temperature Measurement
Material :
Aluminium alloy
Weight :
0.20kg
Painting :
Lacquer Painting Polyester Powder Coating
Description

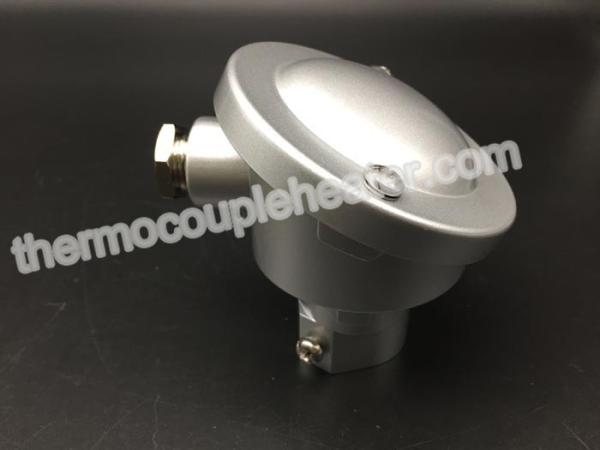

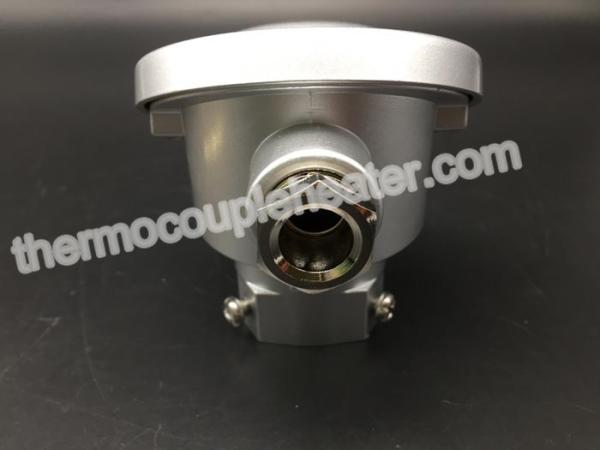

Industrial Silver Cast In Aluminium Thermocouple Head DIN A , ISO9001

1. Product description

Cast In Aluminium Thermocouple Head are made of Aluminum, stainless steel, Bakelite or Iron . They are designed to provide access to connections between the sensor and the instrument wiring and to provide protection from the elements , which is widely used in thermocouple and RTD assembly .Thermocouple head terminal blocks are generally available from two to six terminals.

2. Material

1. Die-casting aluminium ADC12

Aluminium alloy Cu Zn Si Mg Mn Fe Al
ADC12 1.58% 0.05% 11.80% 0.06% 0.07% 0.34% Balance

2. Bakelite plastic

3. Stainless Steel 304, 316

3. Technical Specifications

Industrial Silver Cast In Aluminium Thermocouple Head DIN A ISO9001 Passed

Wire entry Probe entry Terminal Block Fixing Hole
M20x1.5 1/2" NPT 47mm, A series
M20x1.5 1/2" BSPP 47mm, A series
M20x1.5 22.5mm 47mm, A series
M20x1.5 32.5mm 47mm, A series
1/2" BSPP 1/2" BSPP 47mm, A series
1/2" BSPP M24x1.5 47mm, A series
1/2" BSPP 32.5mm' 47mm, A series
Pg16 M24x1.5 47mm, A series

4. Feature

1. The appearance of our products is aesthetics.

2. The thread entries are smooth and easy to be installed.

3. High accuracy in paint spraying.

4. About 50 models of heads are available .
