Specifications
Brand Name :
GME
Certification :
ISO/CE/UL/CSA
Place of Origin :
China
MOQ :
50pcs
Price :
USD 1-100 FOB Shanghai/pc
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs/Month
Delivery Time :
7-15 work days
Packaging Details :
Boxes or Wooden Cartons
Lead Wire :
silicon, glassfiber
Shealth Material :
Stainless Steel Ss304/316/321
Color :
Biack and White
Wattage Tolerance :
+5%, -10%
Application :
Oil, Water or Other Liquid etc
Power Source :
Electric
Voltage :
12-480v
Dimension(L*W*H) :
Customizable
Type :
Air Heater, Cartidge heaters
insulation :
Mgo powder
Max working temperature :
450C
tube Diameter :
6mm,8mm,11mm,12.5mm,16mm&18mm
Description

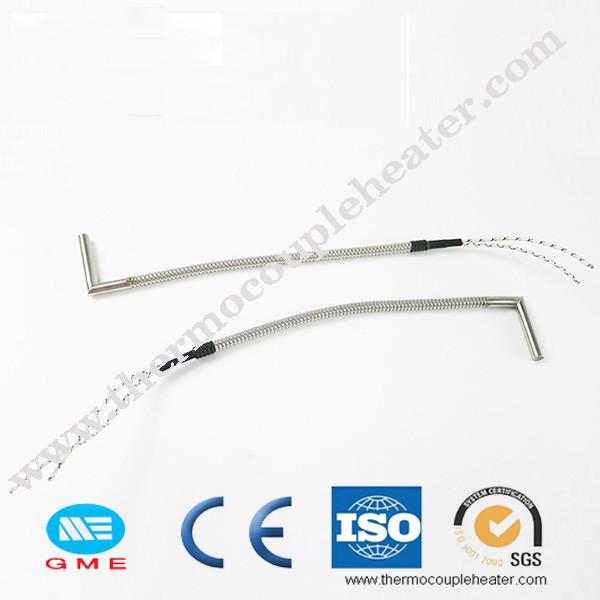

100W 110V electric cartridge heater with angle lead wire 203mm for plastic machinery

Description:

Cartridge heaters with angle lead wire are cylindrical electical heating elements. Mostly used for heating up solids such as injection presses heating plates or various tools, they can also be used for heating up water of gases under certain conditions. Widely used for manufacturig plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries

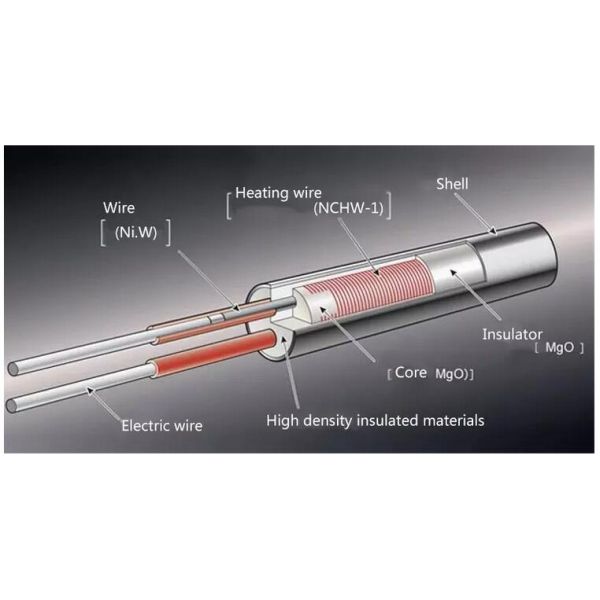

Specification:

1. Tube diameter: 3mm-30mm.
2. Tube Material: SS304; SS316; SS321; NICOLOY800 etc.
3. Insulation Material: High-purity Mgo.
4. Resistance wire element: Ni-Cr or FeCr.
5. Lead Connection Option: Crimped or Swaged leads.
6. Lead and type of connection leads 10" Fiberglass Standard (Wire options: , silicone high temperature frberglass)..
Item Name
cartridge heater 24v 30w molding heating rod
Resistance heating wire
Ni-Cr or FeCr
Sheath
Stainless steel 304,321,316, Incoloy 800, Incoloy 840,
Insulation
High-purity Mgo
Maximum temperature
800 degree Celsius
Voltages available
380V,240V, 220V,110V,36V,24V or 12V
Power available
according to your requirement
Wattage Tolerance
+5%, -10%
Thermocouple
K type or J type
Lead wire
300mm length; Different type of wire is available

100W 110V Electric Cartridge Heater With Angle Lead Wire 203mm For Plastic Machinery

Application:

1.Injection moulding - Internal heating of nozzles
2.Hot runner systems - Heating of manifolds
3.Packaging industry - Heating of cutting bars, hot stamps
4.Laboratories - Heating of analytical equipment
5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6.Telecommunications: Deicing, Enclosure Heater
7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
8.Food Service: Steamers, Dish Washers,
9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
