Specifications
Brand Name :
GME
Certification :
ISO/CE/UL/CSA
Place of Origin :
China
MOQ :
50pcs
Price :
USD 1-100 FOB Shanghai/pc
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs/Month
Delivery Time :
7-15 work days
Packaging Details :
Boxes or Wooden Cartons
Lead Wire :
silicon, glassfiber
Shealth Material :
SS304 ,SS321 ,SS316
Color :
Biack and White
Wattage Tolerance :
+5%, -10%
Application :
Oil, Water or Other Liquid etc
Power Source :
Electric
Voltage :
12-480v
Dimension(L*W*H) :
Customizable
Type :
Air Heater, Cartidge heaters
insulation :
Mgo powder
Description

Custom-made good quality 1000W cartridge heater pencil heater

Description:

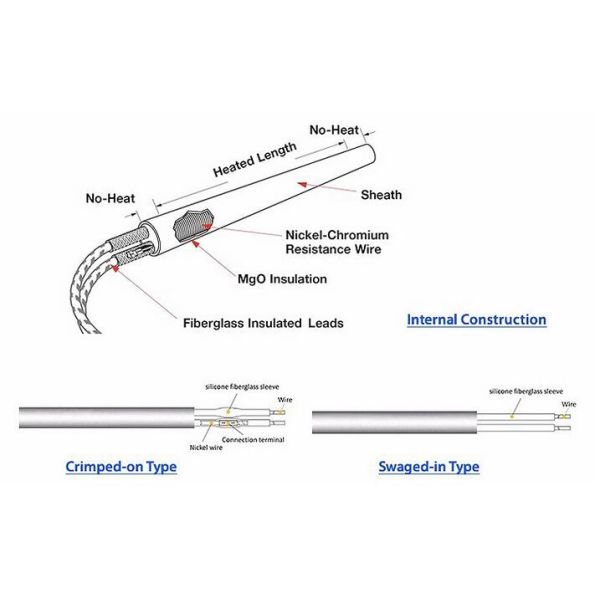

1) Classical structure of cartridge heater (Popular structure) is same to heating tube,Generally consists of five parts:Insulator, sealing material,leading rods, filling material, electric wire, metal protective tube, terminal.Coil electric wire and leading rod are set in the metal protective tube.

2) manufacturing process : put coil heating wires through the seamless steel pipe, copper or aluminum tube, Using filling machine more to fill insulation and thermal oxidation object evenly in the gaps,such as Crystal magnesium oxide powder (alumina or clean quartz sand are all available) etc.,And then use shrink tube machine contract pipe diameter, make oxide medium dense(make density achieves above 3.3 g/cm3),Ensure the heating wire cut off from the air, the center position touch pipe wall and don’t offset.It can increase heating power more than ten times per unit area.the using life can be improved to more than 10 years,Comparing with large heating power electric element ,tubular heaters can save 5% material,Thermal efficiency can reach above 90%.


Specification:

  • 4mm diameter cartridge heater 5v with temperature control
  • Sheathmaterial:SUS201,304,321,316,and Incoloy800,840
  • Wattage Tolerance:+5%, -10%
  • Resistance tolerance:+10%, -5%
  • Voltages available:380V,240V, 220V,110V,36V,24V or 12V
  • Max operating temp:800ºC
  • Length tolerance:±1 mm
  • Diameter tolerance:-0.02mm
  • Standard Cold Zone:5-10mm
  • Thermocouple Location:type J or K are available
  • Insulation resistance (cold): ≥ 500 MΩ
  • Maximum leakage current (cold):≤ 0.5 mA

Custom - Made 1000W Cartridge Heater Pencil Heater With Temperature Control

Application:

1 Semiconductor chamber heating

2 Semiconductor wafer lead connection
3 Semiconductor wire and die bonding
4 Freeze protection and deicing of equipment in cold climates or applications
5 Humidity Control
6 Patient Comfort heating used in medical devices
7 Mold die and platen heating
8 Seal bars used in packaging equipment
9 Test sample heating in gas chromatography
